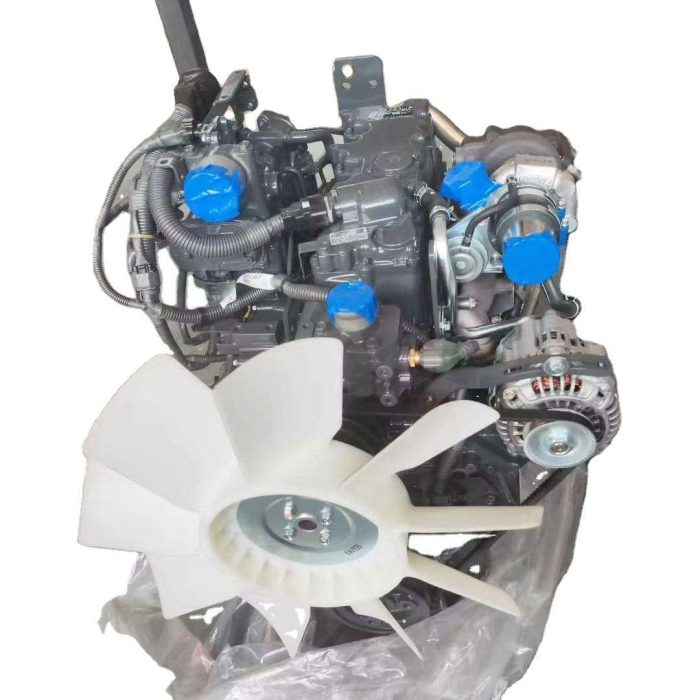

Kubota V3800-CR-TI Diesel Engine: Comprehensive Technical Overview and Engineering Guide
Engine Overview
The Kubota V3800-CR-TI is a four-cylinder, four-stroke, water-cooled diesel engine that integrates advanced common rail fuel injection and turbocharging and intercooling technology. With a displacement of 3.769 liters and a rated power output of 100-115 horsepower over a 2600-2800 rpm range, it offers excellent torque, precise fuel control, and efficient combustion.
Designed for heavy-duty industrial, construction, agricultural, and power generation applications, this engine meets EPA Tier 4 and EU Stage IIIA emission standards, achieving low emissions while maintaining excellent performance. It is widely suitable for medium-sized excavators, wheel loaders, generator sets, and various types of construction machinery, demonstrating excellent reliability and fuel economy under heavy-duty conditions.
Technical Specifications and Key Features
The V3800-CR-TI features an inline four-cylinder design, a high-pressure common rail fuel system, and a turbocharging and intercooling system. The engine, with a bore x stroke of 98 mm x 125 mm, offers a wide torque platform and smooth operation. With a net weight of approximately 340 kg, the compact design facilitates installation and integration on medium-sized equipment.
Core Technologies and Performance Advantages:
High-Pressure Common Rail Fuel Injection System: Enables precise fuel metering and multi-stage injection, significantly improving combustion efficiency and reducing fuel consumption and emissions.
Turbocharged Intercooler Technology: Increases power density by increasing intake air density while effectively controlling combustion temperatures, ensuring stable engine operation in high-temperature environments.
Reinforced Structural Design: Utilizes a high-strength cast iron cylinder block, forged crankshaft, and optimized piston assembly to ensure long-term engine durability under harsh operating conditions.
Intelligent Thermal Management System: Equipped with a high-efficiency water cooling system and intelligent temperature control, the engine maintains optimal operating temperature.
Comprehensive Emission Control: Integrated advanced after-treatment systems, including a diesel oxidation catalyst and particulate filter, meet the latest emission regulations.
Installation and Operation Guide
Installation Requirements:
The engine must be installed on a flat, solid foundation using the manufacturer’s recommended vibration damping mounts. During installation, ensure that the engine and transmission are aligned accurately and maintain adequate clearance for maintenance.
Operating System Management:
Fuel System: Use high-quality diesel that meets national standards and regularly check the fuel filter.
Cooling System: Use the specified coolant type, ensure the coolant level is normal, and regularly check the pipes for leaks.
Lubrication System: Use engine oil of API CJ-4 or higher grade, and replace the oil filter according to the maintenance interval.
Operating Precautions:
Before starting, check all systems, including the engine oil level, coolant level, and air filter condition. During operation, closely monitor instrument indicators and immediately stop the engine for inspection if any abnormalities are detected.
Maintenance Specifications
Regular Maintenance Items:
Replace engine oil and oil filter every 250 operating hours.
Replace fuel filter every 500 operating hours.
Check and adjust valve clearance every 1000 operating hours.
Perform a comprehensive inspection of all engine systems every 2000 operating hours.
Seasonal Maintenance Requirements:
Replace engine oil and coolant with the appropriate grades according to ambient temperature changes. Air filter inspection intervals should be shortened when operating in dusty environments.
Long-Term Storage Management:
When the engine is out of service for an extended period, perform rust prevention treatment, drain the fuel system, rotate the engine regularly, and maintain regular maintenance.
Common Troubleshooting
Starting Difficulty Fault Tree:
Check battery voltage and starter operating status.
Check fuel system supply pressure and injector operation.
Check engine mechanical compression status.
Analysis of Underpower:
Intake System Check: Air filter restriction, supercharger operating status.
Fuel System Check: Fuel pressure, injector spray quality.
Mechanical System Check: Valve seals, piston ring condition.
Abnormal Exhaust Diagnosis:
Black smoke indicates incomplete combustion; check the intake system and fuel injection parameters. Blue smoke indicates oil combustion; check piston rings and valve guide seals. White smoke may indicate a coolant leak or poor fuel atomization.
Overheating Troubleshooting:
Check coolant capacity and quality, clean the radiator surface, and check water pump efficiency and thermostat opening temperature.
Typical Applications:
Construction Machinery Applications:
This product is widely used in 8-15 ton hydraulic excavators, 3-5 ton wheel loaders, and other equipment, demonstrating excellent operating efficiency and fuel economy.
Generator Applications:
As a power source for 60-120 kVA generator sets, it provides reliable power for various applications, featuring excellent starting performance and high voltage stability.
Agricultural Machinery:
It is used in agricultural equipment such as high-horsepower tractors and combine harvesters, meeting the demands of high-intensity, continuous operation.
Special Applications:
It is also widely used in mining machinery, port equipment, and emergency power supplies, demonstrating excellent environmental adaptability.
Technical Development Outlook
With increasingly stringent emission regulations, the V3800-CR-TI series engine continues to undergo technological upgrades. The new generation will optimize the combustion system, increase common rail injection pressure, improve aftertreatment system efficiency, and introduce an intelligent control system to enable fault warning and remote monitoring.
Conclusion
The Kubota V3800-CR-TI diesel engine, with its advanced technical configuration, reliable performance, and excellent economy, has become a preferred choice for medium-duty power equipment. Proper installation, proper operation, and timely maintenance ensure long-term stable operation, creating maximum value for users.
We recommend that you maintain a complete maintenance history, use genuine parts, and have your engine inspected regularly to extend engine life and maintain optimal performance.
