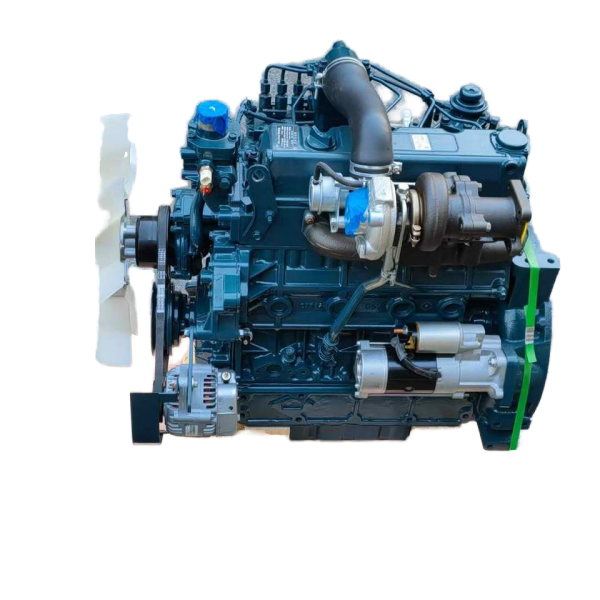

In-depth technical analysis of Kubota V3800
The Kubota V3800 is a heavyweight champion in the realm of small industrial engines. This powerful 3.8-liter four-cylinder engine delivers sustained torque and “draft” typically only found in larger, heavier power units.
At Jianming Machinery, we know the V3800 inside and out. It’s a sophisticated machine that blends the robustness of traditional mechanics with the sophistication of modern combustion technology. Here’s a technical analysis of why the V3800 is a leader in its class.
- Technical Specifications: 3.8-liter Architecture
The V3800 is more than just an enlarged version of the V3300; it’s a specially designed block capable of withstanding the immense internal pressures required to generate over 100 horsepower in a four-cylinder configuration.
Displacement: 3,769 liters (230 cubic inches).
Bore and Stroke: 100.0 mm x 120.0 mm The 100mm bore allows for large valves, while the 120mm stroke provides the high mechanical leverage required for low-end torque.
Intake methods: Available in naturally aspirated (V3800-DI), turbocharged (V3800-DI-T), and turbocharged intercooled (TI) versions.
Performance: Power output ranges from 75 hp to over 110 hp, with peak torque occurring at a lower 1400-1600 rpm.
- Engineering Highlights: E-CDIS Combustion
A standout feature of the V3800 engine is its E-CDIS (Electronic Direct Injection System). In older engines, injectors were typically mounted at an angle. In the V3800 engine, Kubota moved the injectors to the very center of the four-valve cylinder head.
Technical advantages: By placing the injectors vertically in the center, fuel injection can be perfectly and evenly distributed across the piston cup.
Advantages: This results in near-perfect combustion efficiency. You get better value for money (literally), meaning higher power output, significantly reduced fuel consumption, and lower noise levels that meet stringent global emissions standards.
- Smooth Power: Dual Balance Shafts
One of the biggest technical challenges for a 3.8-liter four-cylinder engine is vibration. The large pistons moving at high speeds generate significant “secondary” vibrations, which can even lead to machine disintegration.
V3800 Solution: Kubota integrates two gear-driven balance shafts into the lower crankcase. These two shafts rotate in opposite directions at twice the engine speed.
Result: They effectively counteract the vertical vibrations inherent in large four-cylinder engines. This makes the V3800 run as smoothly as many six-cylinder engines, reducing operator fatigue and extending the lifespan of the machine’s hydraulic components and frame.
- Maintenance Essentials: Protecting the 3.8-liter Engine
Because the V3800 has very high torque and heat output, your maintenance procedures must be strictly followed. Jianming Machinery recommends you focus on the following technical areas:
Four-valve cylinder head maintenance: The V3800 uses a four-valve-per-cylinder design (16 valves in total). This design allows the engine to “breathe” more smoothly. However, this also makes valve clearance adjustment crucial. We recommend checking the clearance every 1500 hours of operation to ensure that uneven wear does not occur at the bridging points between the valves.
Turbocharger lubrication: In the V3800-T model, the turbocharger operates at extremely high speeds. Always use API CJ-4 or CK-4 high-performance engine oil. Inferior oil will decompose under the extreme temperatures of the turbocharger bearing housings, leading to carbon buildup and ultimately causing the turbocharger to seize.
Cooling system capacity: The V3800 engine has a large coolant flow rate. Do not ignore water pump leaks. Localized overheating of a 100mm bore cylinder can cause the cylinder head between the valve seats to crack rapidly.
- Sourcing Professional V3800 Parts
Rebuilding an engine with over 100 horsepower allows no room for “good enough.” The reciprocating mass of the V3800 engine is immense, and all components must be up to par. Jianming Machinery offers:
Precision Rebuild Kit: Includes 100mm pistons with reinforced piston tops and high-strength cylinder liners.
Cylinder Head Assembly: Complete 4-valve cylinder head, pressure-tested for high-boost applications.
Fuel System Components: Direct injection pump and center injector, calibrated for E-CDIS performance.
Dual Shaft Assembly: Replace balancer gears and shafts to restore factory-smooth operation.
- Identification and Global Support
Several generations of the V3800 engine exist, from mechanical direct injection versions to the modern V3800-CR-TE4 (Common Rail Tier 4 emission standard). Before ordering, locate the engine serial number on the cylinder block and the code on the valve cover to ensure parts compatibility.
Is your V3800 experiencing power loss or smoke?
Please contact our technical experts. Jianming Machinery provides the technical data and high-quality parts needed to get your Kubota heavy machinery running again.
