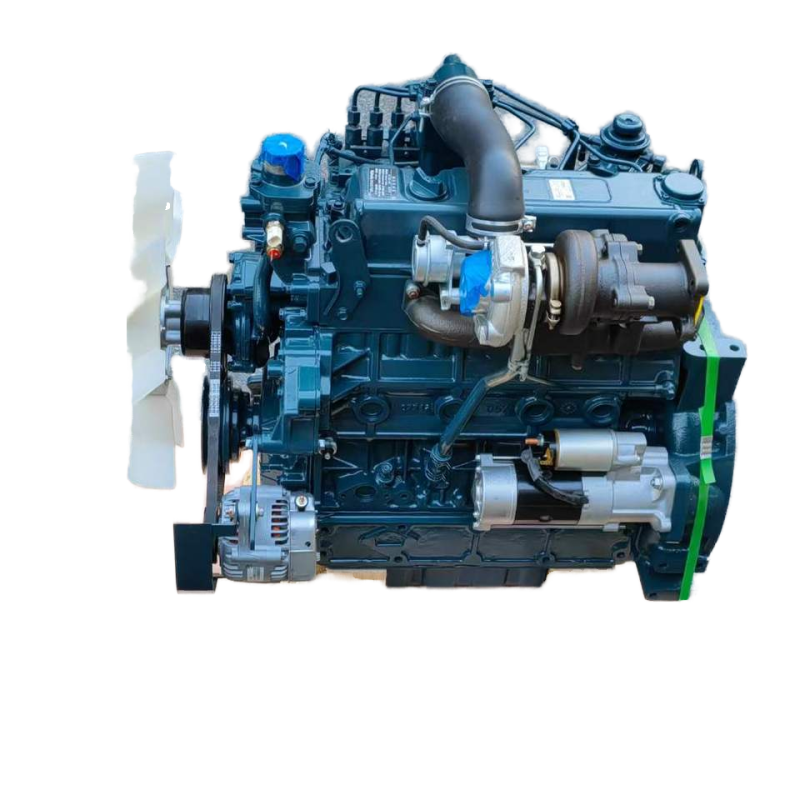

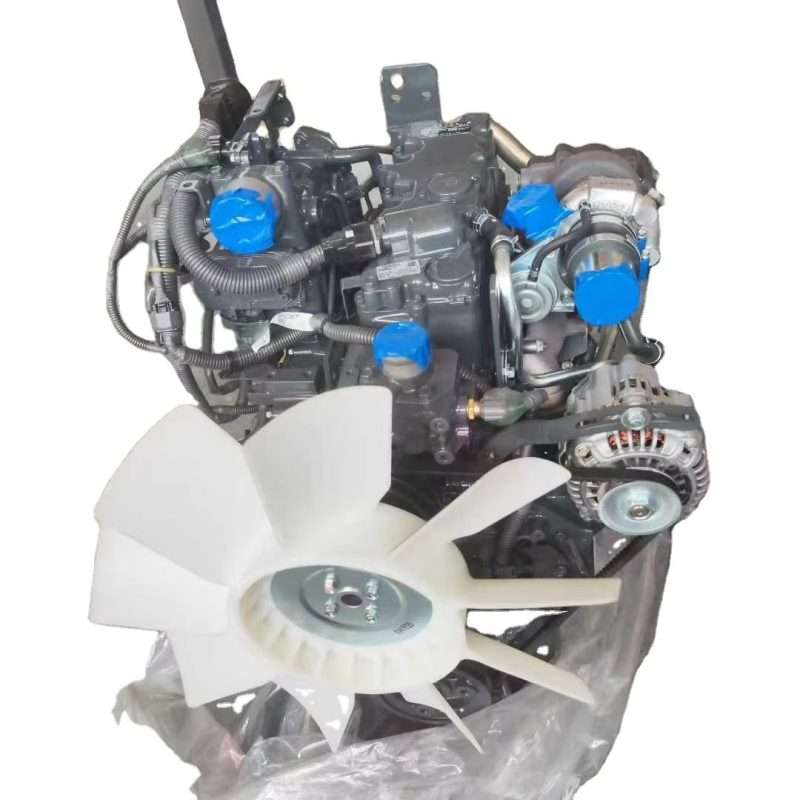

Kubota V3800-CR-TI Engine Technical Analysis
- Understanding the Technology: The True Meaning of CR-TI
The V3800-CR-TI is more than just an engine; it’s a system of integrated technologies. Each letter in the suffix represents a significant leap forward in engineering:
Common Rail (CR): Unlike mechanical injectors, the common rail system maintains extremely high pressure (up to 29,000 psi) fuel injection in a shared fuel rail. This allows for multiple injections per stroke—including pre-injection, main injection, and post-injection—optimizing combustion, reducing noise, and significantly improving fuel efficiency.
T (Turbocharging): Forced intake allows the 3.8L engine to draw in more air, increasing power density.
I (Intercooling/Supercharged Air Cooling): Because compressed air generates heat, the V3800-CR-TI uses an intercooler to cool the intake air before it enters the cylinders. Cooler air is denser and contains more oxygen per cubic inch, resulting in more powerful and efficient combustion.
- Technical Specifications: Power Curve of the 3.8-liter Engine
The V3800-CR-TI is designed for machines that cannot handle excessive loads and therefore lack power.
Displacement: 3,769 liters (230 cubic inches).
Configuration: 4 cylinders, 16 valves (4 valves per cylinder).
Bore and Stroke: 100 mm x 120 mm.
Performance Range: Produces 100 hp to 115 hp (74.5–85.8 kW).
Peak Torque: A large torque curve is available early in the engine, typically peaking around 1500 RPM, providing the “towing” power required for heavy digging and lifting.
- “Electronic Brain”: ECU and Emissions Control
The V3800-CR-TI is managed by a sophisticated engine control unit (ECU). This computer monitors dozens of sensors every second—boost pressure, fuel rail pressure, intake manifold temperature (IMT), and exhaust gas temperature (EGT).
This electronic management system is crucial to the aftertreatment system. To meet Tier 4 Final standards, most V3800-CR-TI engines employ a combination of a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF). The ECU manages the “regeneration” cycle, burning off carbon deposits to keep exhaust gases flowing. At Jianming Machinery, we emphasize that maintaining these sensors is as important as changing the engine oil.
- Professional Maintenance: Protecting the High-Pressure System
Because the V3800-CR-TI has much smaller operating tolerances than its mechanical predecessors, its maintenance requirements are non-negotiable:
2-Micron Rule: Common rail injectors are extremely sensitive to minute impurities and moisture. A tank of “dirty” diesel can cost over $3,000. You must use a genuine 2-micron fuel filter and a high-efficiency oil-water separator.
Low-SAPS Lubricating Oil (CJ-4/CK-4): The CR-TI engine cannot use conventional diesel engine oil. Low-SAPS (sulfate ash, phosphorus, and sulfur) oil must be used to prevent permanent DPF clogging.
Intercooler Integrity: Inspect the air-to-air intercooler for cracks or debris buildup. Intercooler leaks can lead to an overly rich air-fuel mixture, causing exhaust temperatures to spike, resulting in premature DPF failure and turbocharger loss.
Coolant Chemistry: The 100mm bore and high turbocharger temperatures require high-quality, long-life (LLC) coolant to prevent cylinder liner cavitation and scaling in the intercooler heat exchanger.
- Purchasing V3800-CR-TI Parts from Jianming Machinery
The V3800-CR-TI is a specialized engine; “general-purpose” parts are insufficient. Jianming Machinery offers professional-grade components designed specifically for the 07 Series electronic platform:
CRS injectors and fuel rails: Precision-calibrated devices designed to match your engine’s specific ECU diagram.
Turbochargers and intercoolers: High-flow components designed to handle the thermal loads of a 115 hp 3.8L engine.
ECU-grade sensors: True boost, temperature, and pressure sensors to prevent “false” fault codes and limp-mode triggering.
Complete overhaul kits: Equipped with the correct 4-valve pistons, MLS (multi-layer steel) cylinder head gaskets, and heavy-duty bearing sets.
- Jianming Machinery Professional Technical Support
Whether you’re troubleshooting a Kubota SVL95-2 that keeps entering regeneration mode or rebuilding a V3800-CR-TI for a telescopic forklift, you need a partner who understands both the data and the machine.
Is your engine displaying a “low fuel pressure” fault code?
Don’t guess, contact our technical team. For jianming machinery, please provide your engine serial number and we will help you determine the exact sensors, injectors, or gaskets needed to restore your machine’s power.
