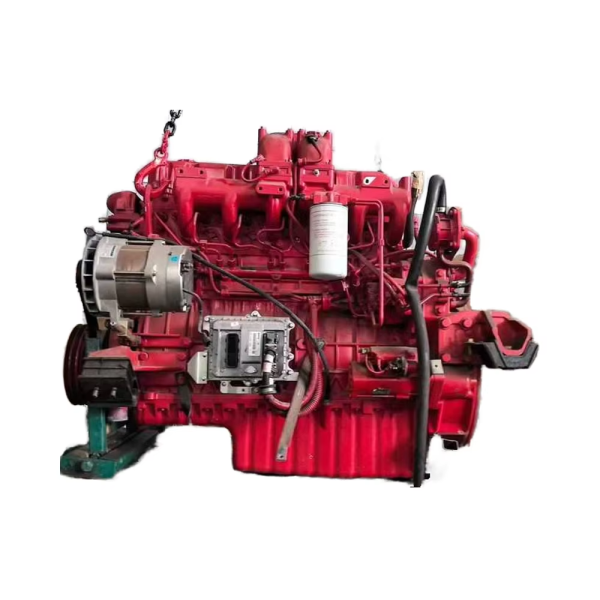

Doosan DL08 Engine Electronic Control Power Hub
In the power lineup of 25-35 ton heavy earthmoving and mining machinery, the Doosan Develon DL08 engine, with its 7.6-liter displacement and superior electronic common rail technology, has established itself as a mainstay for high-intensity operations. This inline six-cylinder, liquid-cooled, four-valve turbocharged intercooled diesel engine is the absolute core of the Doosan DX300LC and DX340LC heavy-duty tracked excavators and the DL300 wheel loader. According to the technical specifications on jianmingmachinery the DL08 perfectly fills the power gap between medium-sized equipment and ultra-large mining machinery. Employing a 108mm bore and 139mm long stroke, the DL08 delivers a robust 210 kW of power and over 1100 Nm of peak torque across a wide low-to-mid-range speed range of 1300 to 1800 RPM, providing unparalleled mechanical strength for the large-capacity bucket’s stripping operations and heavy-duty slewing.
From a combustion engineering and fluid dynamics perspective, the DL08’s performance leap stems from the deep synergy between its highly integrated Bosch electronically controlled high-pressure common rail injection system and its top-mounted four-valve architecture. The engine control unit (ECU) can precisely control the high-pressure fuel pump with microsecond-level precision, pushing the fuel pressure in the common rail to over 1800 Bar. Through electronically controlled injectors vertically and centrally positioned at the center of the four valves, ultra-high-pressure atomized diesel fuel is precisely injected into the deep concave combustion chamber atop the 108mm piston. This centrally symmetrical injection layout not only maximizes the mixing efficiency of fuel and high-density air, but also completely smooths out drastic changes in cylinder pressure through an ECU-controlled multi-stage pre-injection strategy. This millisecond-level flexible combustion control not only allows the 30-ton heavy-duty excavator to unleash extremely linear power when cutting rock at full load, but also fundamentally reduces mechanical noise and harmful particulate emissions.
To withstand the devastating cylinder pressure generated by the 7.6-liter six-cylinder engine under extreme conditions, the DL08’s underlying components exhibit top-tier heavy metallurgical standards. Its main structure relies on an ultra-high-strength alloy cast iron integral cylinder block with a deep skirt design, internally inlaid with precision-honed wear-resistant cylinder liners, ensuring excellent thermal stability and ease of overhaul. The core bearing the immense explosive force is a heavy-duty crankshaft forged from a single piece of special alloy steel and subjected to deep high-frequency quenching. This crankshaft is firmly anchored by seven wide main bearing seats, and equipped with a large-capacity silicone oil damper at the front end, perfectly absorbing the destructive torsional resonance generated by the inline six-cylinder long-stroke engine under low-speed, heavy-load conditions. Furthermore, an extremely robust all-gear timing system ensures absolute synchronization between the valve mechanism and the high-pressure oil pump, completely eliminating the fatal risk of flexible transmission component breakage in the dusty quarry environment.
In the high-intensity, continuous operation of open-pit mines, the DL08 engine’s lifespan is highly dependent on near-stringent fluid purity and thermal balance management. The large 7.6-liter displacement requires extremely high-flow-rate oil lubrication and forced-cooling nozzles at the piston bottom to work in tandem to prevent thermal fatigue of the 108 mm piston under continuous high-load output. Even more critically, its extremely precise electronically controlled common rail injectors have “zero tolerance” for trace amounts of water and abrasive particles in the diesel fuel. Any inferior fuel can quickly destroy high-pressure control valves, leading to rail pressure leaks or nozzle erosion and cylinder scoring. Within jianmingmachinery high-stress parts supply system, we deeply understand the meticulousness of a DL08 deep overhaul. Faced with extremely stringent cylinder sealing requirements, we insist on providing precision components that meet Doosan’s original engineering parameters, from multi-layer steel (MLS) cylinder head gaskets capable of withstanding ultra-high explosion pressure to 108mm piston assemblies with precise tolerances and heavy-duty crankshaft bearings. We know that only by adhering to original factory standards in the most critical mechanical clearances can this 7.6-liter industrial heart, after reconstruction, once again drive this 30-ton steel behemoth with a deep roar, crushing all obstacles.
