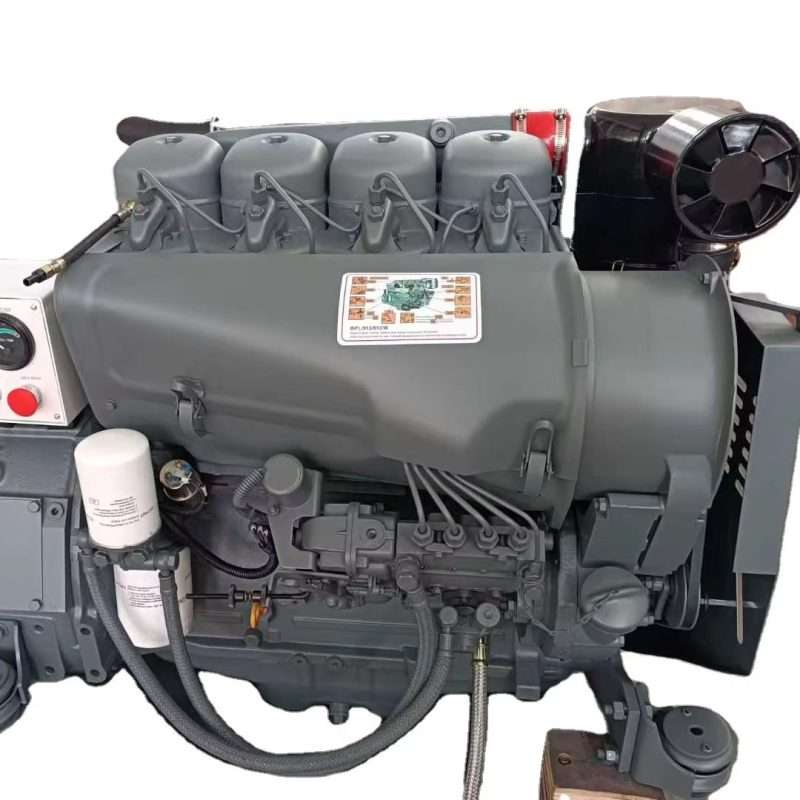

Deutz F4L912 Engine Inline Four-Cylinder Four-Stroke Diesel Engine
In the realm of industrial power, the Deutz F4L912 is a legend. Often hailed as the “immortal engine,” this four-cylinder, air-cooled engine has powered a wide range of equipment for decades, from underground mining rigs and heavy trucks to tractors and irrigation pumps. Its reputation is built on a radical design philosophy: “It won’t break without it.” By eliminating the radiator, water pump, and hoses, Deutz created an engine capable of operating reliably in harsh environments where liquid-cooled engines would be ineffective.
At Jianming Machinery, we hold the F4L912 engine in high esteem. It is an engine born from a profound understanding of mechanical principles and meticulous maintenance. The following is an in-depth analysis of the F4L912 engine’s engineering design, revealing how it became a masterpiece of industrial minimalist design.
- Air Cooling Engineering: Axial Fan System
The most striking technical feature of the F4L912 engine is its cooling method. Unlike traditional engines, it employs an integrated axial cooling fan driven by the crankshaft via a V-belt.
Thermal Efficiency: The fan forces a large volume of air through specially designed cooling fins on the cylinders and cylinder heads. This ensures the engine quickly reaches optimal operating temperature, reducing cold-start wear.
Environmental Adaptability: Since no coolant is required, there is absolutely no risk of boiling in the desert or cylinder block freezing/cracking in Arctic conditions. This makes the F4L912 the preferred choice for mining in remote areas and high-altitude operations.
Integrated Oil Cooler: The F4L912 integrates an oil cooler directly in the path of the cooling air. Since oil plays a crucial cooling role in air-cooled engines, this layout is essential for maintaining oil viscosity and lifespan.
- Technical Specifications and Modular Design
One of the biggest technological advantages of the Deutz 912 series engines is their modular structure. Each cylinder and cylinder head is an independent unit, allowing for “selective maintenance” without complete engine disassembly.
Displacement: 3.770 liters.
Configuration: Inline four-cylinder four-stroke diesel engine.
Bore and Stroke: 100.0 mm x 120.0 mm.
Combustion Method: Utilizes a specially designed piston cup for high thermal efficiency direct injection (DI).
Power Output: Typically ranges from 32 kW to 54 kW (43 hp to 72 hp) depending on engine speed and application.
Modular Advantage: If a single cylinder fails (e.g., a broken piston ring or a scratched cylinder liner), that specific “cylinder kit” can be replaced without removing the engine from the machine or interfering with the other three cylinders.
- Structural Integrity: Tunnel-type Crankcase
The F4L912 engine uses a tunnel-type crankcase made of high-strength cast iron. This design provides extremely high structural rigidity, which is crucial for air-cooled engines that lack the “water jacket” used in traditional water-cooled engines to suppress engine noise and vibration.
Rigid Support: The crankshaft is supported by five main bearings, ensuring perfect alignment even under high-torque industrial loads.
Gear-Driven Precision: The camshaft and fuel injection pump are driven by high-precision timing gears located at the front of the engine. This mechanical timing system is renowned for its exceptional reliability, requiring virtually no maintenance over thousands of hours of operation.
- Maintenance Expertise: Proactive Maintenance for the F4L912
To ensure the F4L912 reaches its potential lifespan of over 20,000 hours, technicians must focus on the unique requirements of the air-cooling system:
Cleaning the Radiator Fins: The most common cause of failure in the F4L912 engine is “debris overheating.” Dust, oil, or metal shavings accumulate between the cylinder radiator fins, forming a heat-insulating layer that hinders heat dissipation. Technical Tip: Clean the radiator fins and oil cooler every 250 hours of operation using compressed air or a pressure washer (handle with care).
Fan Belt Tension: Since the fan acts as the engine’s “water pump,” a slipping or broken belt can have disastrous consequences. Most F4L912 engines are equipped with a mechanical “belt breakage” warning or stop switch. Never bypass this safety device. Valve Clearance Maintenance: Maintaining proper valve clearance is crucial for starting and power output as cylinders and pushrods expand significantly during heating. Always adjust valve clearance when the engine is fully cooled to ensure accurate mechanical timing.
- Procurement of Genuine F4L912 Parts from jianming Machinery
Due to the long production history of the 912 series engines, the market is flooded with inferior imitations. However, the high heat load of air-cooled engines places extremely high demands on metallurgical processes. jianming Machinery offers:
Advanced Cylinder Kits: Includes finned cylinder barrels, pistons, and piston rings, specifically designed to handle the rapid thermal expansion of the 912 series engines.
Axial Fan and Bearings: High-durability fan assembly ensuring stable airflow even at high ambient temperatures.
Fuel Injection Assembly: Precision nozzles and pumps calibrated specifically for Deutz direct injection systems.
Complete Gasket Sets: Utilizing special “cylinder head to cylinder block” seals, some versions can withstand extreme temperatures without traditional cylinder head gaskets.
- Technical Authentication and Global Support
The F4L912 engine has undergone several evolutions (including the F4L912W for underground mining). To ensure 100% parts compatibility, always check the engine serial number (ESN) engraved on the crankcase and the engine model on the manufacturer’s nameplate.
Is your Deutz F4L912 engine overheating or undercompressing?
Please contact our technical experts. jianmingmachinery specializes in Deutz 912 series engine parts and provides the necessary technical guidance to rebuild these legendary engines to original factory specifications.
