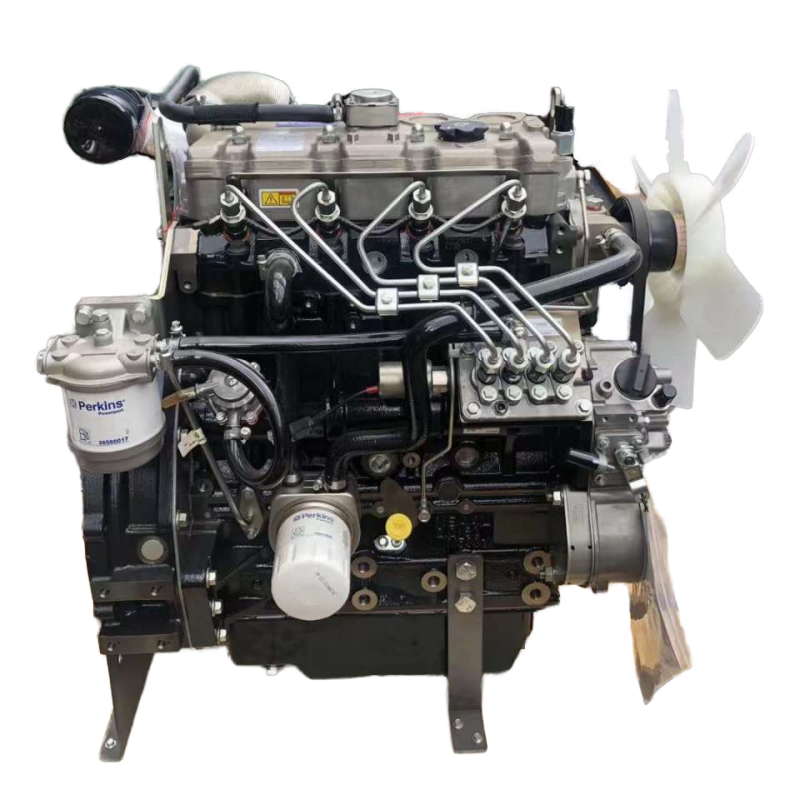

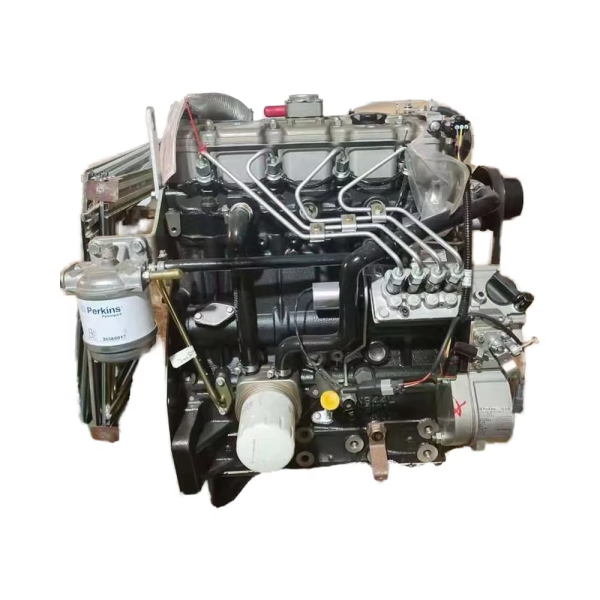

Perkins 404D-22T Engine – Technical Overview and Maintenance Guide
The Perkins 404D-22T is a compact, four-cylinder, turbocharged diesel engine delivering high performance, low fuel consumption, and outstanding durability in a 2.2-liter package. As part of the Perkins 400D Series, it represents a significant advance over earlier mechanical models—offering more torque, better fuel efficiency, and lower emissions while retaining a simple, service-friendly design.
This engine powers a wide range of construction, agricultural, and industrial machines, including excavators, compressors, small loaders, and generator sets in the 40–65 kW range.
1. General Description
The 404D-22T is a four-cylinder, inline, turbocharged, water-cooled diesel engine with a displacement of 2.216 liters.
It produces up to 56 kilowatts (75 horsepower) at 2800 rpm and peak torque around 208 newton-meters at 1800 rpm.
Designed to meet EU Stage IIIA / EPA Tier 4 Interim emission standards, it operates entirely mechanically—no ECU, no sensors—providing excellent reliability and easy field service anywhere in the world.
2. Mechanical Design and Construction
The 404D-22T shares the robust architecture of the Perkins 400D Series:
- Block and Head: Cast-iron for rigidity and vibration absorption, featuring replaceable wet liners for cost-effective overhauls.
- Crankshaft: Forged steel, supported by five main bearings for long life and smooth rotation.
- Camshaft: Gear-driven, operating overhead valves through pushrods and rockers.
- Pistons: Aluminum alloy with internal oil-cooling galleries and steel inserts for ring stability under high cylinder pressures.
- Compression ratio: Approx. 22.5:1, balancing power output and durability.
The turbocharger increases volumetric efficiency by supplying compressed air into the combustion chambers, improving fuel burn and torque output across the entire speed range.
3. Combustion and Fuel System
The engine employs an indirect-injection (IDI) combustion system using a mechanical injection pump and individual injectors feeding pre-combustion chambers in the cylinder head.
The mechanical governor ensures consistent fuel delivery, smooth acceleration, and stable operation under variable loads.
While IDI systems typically operate at lower injection pressure than common-rail designs, the turbocharger compensates by boosting air density, resulting in excellent low-speed torque and cleaner exhaust.
This combination makes the 404D-22T one of the most efficient mechanically governed engines in its class.
4. Turbocharging and Air System
The waste-gated turbocharger delivers boost pressures up to 1.2–1.3 bar, depending on configuration.
Compressed intake air passes through a charge-air cooler (intercooler) in generator or heavy-duty variants, improving air density and combustion temperature control.
The result is a significant increase in torque and responsiveness compared with the naturally aspirated 404D-22.
Exhaust gas routing is optimized to reduce back pressure and maintain steady turbo speed, enhancing performance under transient load changes common in construction and power-generation equipment.
5. Cooling and Lubrication Systems
The cooling system uses a belt-driven centrifugal water pump and thermostat-controlled flow to maintain coolant temperatures between 82 °C and 95 °C.
Proper coolant (meeting Perkins E-LC / MB 325.0) must be used to prevent liner corrosion and cavitation.
The lubrication system is fully pressurized, featuring a gear-driven oil pump, full-flow oil filter, and oil-to-water cooler integrated into the block.
Oil capacity is approximately 6.5 liters, and Perkins recommends oils meeting API CH-4 / CI-4 standards for extended drain intervals.
Under continuous load, oil pressure remains stable even at sustained high RPM thanks to wide bearing journals and precision machining.
6. Performance and Efficiency
The turbocharged 404D-22T offers up to 15–20 % higher power and torque than the naturally aspirated 404D-22, without a major increase in fuel consumption.
- Rated power: 56 kW @ 2800 rpm
- Peak torque: ~208 Nm @ 1800 rpm
- Specific fuel consumption: ~220 g/kWh
The torque curve is broad and flat, providing strong load response—essential for hydraulic systems or generators that demand immediate torque rise.
Noise levels remain low due to IDI combustion and precision balancing of the rotating assembly.
7. Electrical and Starting System
A 12-volt electrical system powers the starter, alternator, and glow plugs.
Glow-plug preheating ensures reliable cold starts in temperatures down to –15 °C.
A mechanical stop solenoid controls engine shutdown, maintaining the Perkins tradition of simplicity and reliability.
8. Maintenance and Service Intervals
The 404D-22T is engineered for long intervals and easy service.
Typical maintenance schedule:
- Oil and filter: every 500 hours or annually
- Fuel filters: every 500 hours
- Air filter: inspect every 250 hours, replace as needed
- Coolant: renew every 2 years
- Valve clearance: inspect every 1000 hours
All service points are located on one side of the engine for convenience in confined compartments.
No electronic diagnostics are required — standard mechanical tools suffice.
When maintained properly, the 404D-22T typically achieves 10,000 operating hours before overhaul.
9. Common Service Issues
Field experience highlights a few predictable maintenance items:
- Fuel pump seal leakage after long use — caused by wear or poor fuel quality.
- Turbo oil seepage from neglected oil changes or low-grade lubricants.
- Hard starting from air ingress or weak glow plugs.
- Overheating due to radiator blockage or coolant neglect.
- Exhaust smoke from dirty injectors or restricted air filters.
Routine fluid replacement and correct filtration eliminate most of these issues. The engine’s mechanical simplicity makes repair straightforward.
10. Overhaul and Durability
The 404D-22T’s wet-liner design allows quick in-frame rebuilds.
Wear limits are: cylinder bore < 0.10 mm, crankshaft ovality < 0.03 mm, and valve seat wear < 0.5 mm.
A typical overhaul includes new liners, pistons, rings, bearings, gaskets, and a reconditioned turbocharger.
When rebuilt with genuine components and proper calibration, the engine regains near-new output and can exceed 20,000 total hours over its service life.
11. Applications
The Perkins 404D-22T is widely used across sectors that demand high power density in compact packages:
- Mini and midi excavators, skid steer loaders, compact wheel loaders
- Agricultural tractors, sprayers, irrigation pumps
- Air compressors, hydraulic power units, light towers
- Generator sets (30 – 80 kVA range)
Its balance of torque, compact size, and easy maintenance makes it a favored choice among OEMs and equipment operators worldwide.
Conclusion
The Perkins 404D-22T embodies the core principles of practical diesel engineering — power, durability, and simplicity.
With its turbocharged 2.2-liter design, mechanical fuel system, and rugged construction, it offers exceptional reliability and efficiency in the field.
For engineers and fleet operators, understanding its systems — fuel, air, turbocharging, and cooling — ensures maximum uptime and low operating cost.
When maintained with clean diesel, OEM-grade lubricants, and scheduled service, the 404D-22T consistently delivers dependable performance in construction, agriculture, and power-generation environments across the globe.
