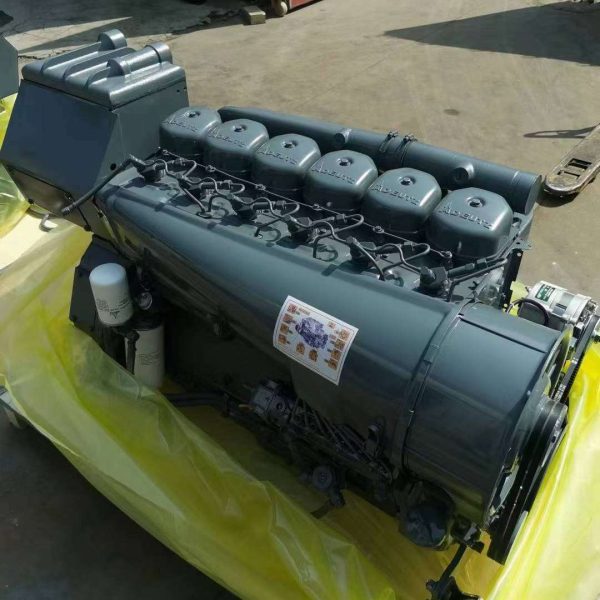

Deutz F6L912 inline six-cylinder naturally aspirated engine
The Deutz F6L912 is the undisputed heavyweight champion in the legendary 912 air-cooled engine family. This 5.6-liter inline six-cylinder naturally aspirated engine inherits the “immortal” design of the F4L912 and scales it up to meet the demands of heavy-duty applications, such as high inertia torque and exceptional durability. From legendary Magirus-Deutz trucks and heavy-duty road rollers to high-powered irrigation pumps and mining vehicles, the F6L912 has proven its ability to conquer the world’s most demanding environments, even without a radiator.
- Technical Architecture: The Advantages of an Inline Six-Cylinder Engine
The shift from four to six cylinders in the 912 series is not merely a power increase, but a manifestation of mechanical harmony.
Inherent Balance: Unlike the four-cylinder version, the F6L912’s inline six-cylinder structure possesses an inherent balance in both primary and secondary mechanical vibrations. This results in smoother power delivery and significantly reduces stress on the crankshaft and engine mounts.
Displacement and Power: The F6L912 has a total displacement of 5.655 liters, a bore/stroke of 100 mm x 120 mm, and a typical power output of 74 kW to 88 kW (100 hp to 120 hp).
High Torque Output: Due to its naturally aspirated design and relatively large displacement for its power class, the F6L912 engine boasts a very flat torque curve. This gives it excellent tolerance under heavy loads—it doesn’t easily experience a lack of power even under heavy workloads.
- Advanced Air Cooling System with Long Cylinder Block Design
Cooling six cylinders consecutively without liquid cooling presents unique engineering challenges. Deutz solved this problem with a high-performance axial fan system specifically tuned for six-cylinder engine blocks.
Cooling Shield: The F6L912 is equipped with a precision-designed air shroud. This shroud ensures that the cooling air blown by the front-mounted axial fan is evenly distributed to all six cylinders. Without it, the rear cylinders (cylinders 5 and 6) would be significantly hotter than the front cylinders.
No Cooling System “Parasites”: The F6L912 engine eliminates the radiator, hoses, thermostat, and water pump, reducing approximately 30% of common failure points in diesel engines. This simplicity is a huge operational advantage in environments such as deep-pit mining or desert construction.
Rapid Warm-up: Air-cooled engines reach operating temperature much faster than liquid-cooled engines. This minimizes the time spent in the “high-wear” cold start phase, which is one reason why these engines often last over 20,000 hours.
- Modular Construction: A Mechanic’s Dream
The F6L912 uses a Deutz monobloc cylinder system. All six cylinders and cylinder heads are independent components.
Targeted Maintenance: If a compression leak occurs in cylinder 6, you only need to remove that cylinder head and block. There’s no need to adjust the ignition timing or cooling system of the other five cylinders. This modular approach significantly reduces labor costs and downtime during mid-cycle maintenance.
Interchangeability: Many high-wear components on the F6L912 (pistons, piston rings, valves, injectors) are the same as those on the F3L912 and F4L912. For team managers, this means significantly lower inventory costs across different engine models.
Direct Injection (DI): The direct injection combustion system, combined with a specially designed piston cup, ensures efficient fuel combustion. This allows the F6L912 engine to have excellent cold-start performance even in mild climates without the need for an auxiliary starter.
- Maintenance and Care: Protecting the Inline Six-Cylinder Engine
While the F6L912 is considered an “immortal,” it is not indestructible. Technical maintenance must focus on its unique air-cooling requirements:
“Cleanliness” is paramount: Since air is the only cooling medium, any leaking oil will coat the fins, acting as insulation. Dust will adhere to the oil, forming a “blanket” that can cause individual cylinders to overheat, leading to catastrophic consequences. Regular steam cleaning or high-pressure air purging of the cylinder radiators is a crucial maintenance task.
Oil Cooler Hygiene: The internal oil cooler is located behind a protective cover. If clogged with debris, the oil temperature will rise sharply, leading to decreased viscosity and premature bearing wear.
V-Belt Integrity: The axial fan is driven by a V-belt. In the F6L912 engine, the fan is the “heart” of the engine. Most industrial versions are equipped with a belt breakage disconnect switch. This switch must be tested regularly to ensure that a simple belt breakage does not cause the engine to melt.
- Sourcing F6L912 Parts from jianming Machinery
When overhauling a 5.6-liter engine, the quality of replacement parts—especially the metallurgical properties of the cylinder block and the precision of the fuel injectors—is paramount. jianming Machinery provides the following support for the F6L912 engine:
Complete Cylinder Kit: High-quality radiator cylinder blocks and pistons designed to handle the thermal expansion cycles unique to a 6-cylinder block.
Heavy-duty Axial Fan: Precision-balanced fan assembly ensuring vibration-free cooling.
Fuel Injection Service: The fuel injection pump and nozzles are calibrated to meet the specific torque requirements of the 6-cylinder output.
Special Gaskets: Includes critical “compression washers” and seals that maintain the interface between each cylinder head and cylinder block.
- Identification and Support
The F6L912 engine has been in production for over 40 years and has been available in various configurations. To ensure 100% parts accuracy, always locate the engine serial number (ESN) and CPL/code on the engine nameplate (usually located on the cooling shroud or crankcase).
Does your Deutz F6L912 engine need power restoration?
Trust the experts. jianmingmachinery provides the necessary technical knowledge and genuine/OEM parts to ensure your legendary 6-cylinder model continues to run for decades to come.
