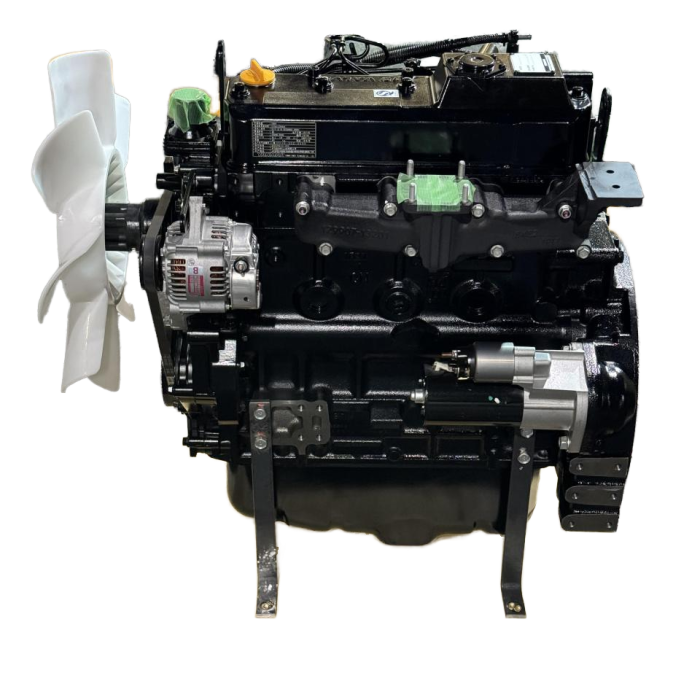

Yanmar 4TNV94L Technical Analysis: A Benchmark for 3.0-liter Heavy-Duty Industrial Fluid Performance
The Yanmar 4TNV94L engine is a benchmark in the mid-range industrial powertrain. This advanced 3.054-liter four-cylinder liquid-cooled diesel engine is the flagship of Total’s new Value (TNV) range of heavy-duty engines. With its powerful 94mm bore and 110mm long stroke, this platform is specifically designed to maximize torque multiplication at low speeds, making it ideal for 5.0 to 8.0-ton mid-range excavators, high-capacity skid steer loaders, and heavy-duty industrial forklifts. The “L” designation in the TNV range typically emphasizes its optimized low-emission characteristics and enhanced load control, achieving a perfect balance between powerful mechanical performance and stringent environmental requirements without over-reliance on fragile electronic after-treatment systems. At jianmingmachinery, we consider the 4TNV94L the mechanical backbone of modern, large-tonnage, compact equipment, requiring uncompromising technical precision during regular maintenance and major overhauls to maintain its legendary service life of over 15,000 hours in the harshest global environments.
The 4TNV94L engine’s technological advantage stems from its ultra-precise direct injection (DI) structure and dynamically balanced combustion mapping, resulting in an exceptionally flat torque curve—crucial for continuous hydrostatic drive and heavy-duty hydraulic lifting. The engine utilizes a specially contoured concave combustion chamber machined directly onto the top of each 94mm piston, forcing incoming air into a violent, high-pressure vortex, ensuring near-perfect mixing with atomized diesel fuel. This process is precisely controlled by a heavy-duty gear-timed fuel injection pump (typically employing Yanmar’s advanced Eco-governor technology), which delivers fuel at extremely high pressures, causing rapid and controlled expansion of the cylinder gases. This powerful direct injection strategy gives the 4TNV94L engine a unique “dragging” power, easily maintaining stable speeds and continuous hydraulic flow even when the machine mast is lifting its maximum tonnage or when the excavator bucket encounters the resistance of hard bedrock. This mechanically centered fuel delivery system provides incredible operational resilience, enabling the engine to withstand electrical sensor failures that often cripple fully digital equipment in wet or dusty environments.
To withstand the immense reciprocating forces and thermal loads generated by a 3.0-liter long-stroke diesel engine, the 4TNV94L engine employs a cast iron monolithic block with deep skirts and densely reinforced ribs, designed to counteract internal harmonics and prevent structural deformation under maximum parasitic loads. As this engine frequently serves as a load-bearing structural component in the counterweight area of heavy machinery, Yanmar engineers equipped it with a high-strength forged steel crankshaft supported by five large main bearings and equipped with a heavy-duty timing gear system. By completely eliminating the timing belt or chain, the 4TNV94L eliminates the risk of catastrophic valve-piston collisions, ensuring that critical intake, exhaust, and fuel injection timings remain perfectly synchronized throughout the engine’s entire lifespan. Furthermore, the block features a large-capacity integrated cooling channel surrounding the upper cylinder wall and valve seats, rapidly dissipating the intense mechanical heat generated during continuous full-throttle operation; simultaneously, a large-capacity cycloidal oil pump ensures adequate lubrication of all critical journals, even when the equipment is operating at extreme angles of inclination.
To ensure the maximum reliability of the 4TNV94L engine, strict adherence to fluid hygiene and thermal management procedures is essential, particularly regarding the high-pressure fuel system and heavy-duty liquid cooling circuit. The multi-hole direct injection nozzles, with their extremely small manufacturing tolerances, are highly susceptible to water contamination and abrasive particles; failure to strictly adhere to 2-micron fuel filtration and daily oil-water separator evacuation can lead to rapid nozzle coking, distorted injection patterns, localized overheating, and potentially even melting of the piston crown. Simultaneously, the chemical composition of the 3.0-liter cooling system must not be compromised. Operators must strictly use high-quality heavy-duty long-life coolant (ELC) to prevent cavitation—a highly destructive phenomenon where collapsing bubbles slowly penetrate cast iron cylinder liners under heavy loads—while simultaneously ensuring the thermostat and high-flow water pump operate at maximum efficiency to prevent micro-boiling, which inevitably leads to failure of the multi-layer steel (MLS) cylinder head gasket.
At jianmingmachinery, we specialize in providing high-stress, precision-engineered parts for the 4TNV94L engine, including 94mm heavy-duty piston kits with precise DI combustion chamber geometry, high-strength main bearings and connecting rod bearings, and dedicated MLS cylinder head gaskets for sealing the high cylinder pressure generated by the long-stroke cylinder block. We understand that 8-ton excavators or heavy-duty forklifts powered by the 4TNV94L engine are vital sources of revenue and cannot afford premature failure due to inferior aftermarket parts. Our technical support team is dedicated to providing precise dimensional data and expert-grade parts logistics to restore your Yanmar 4TNV94L to its original factory performance, ensuring it continues to deliver the sustained high torque power required for your industrial operations.
