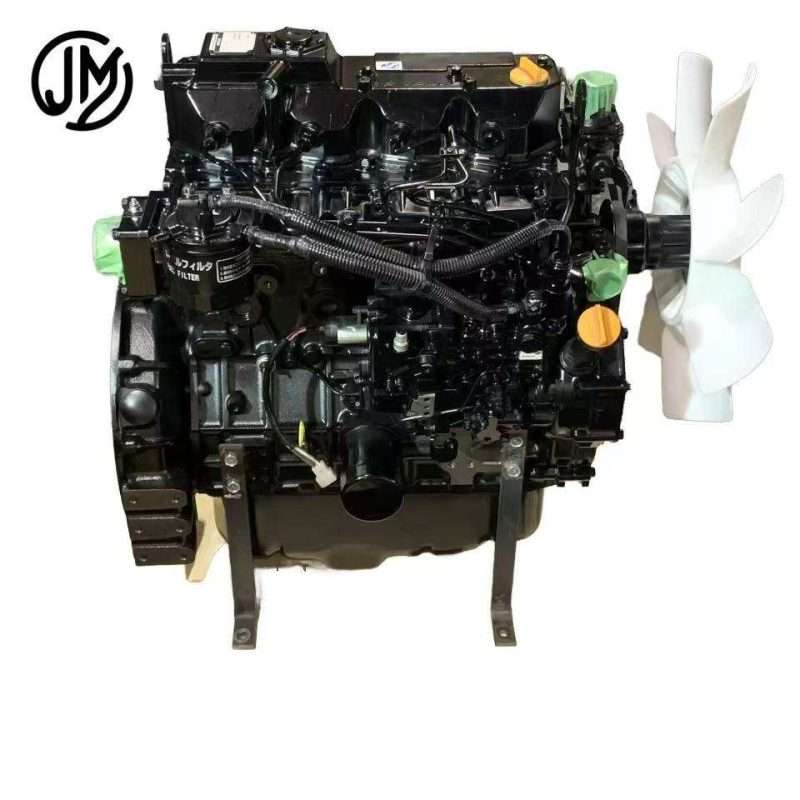

In-Depth Technical Analysis of the Yanmar 4TNV98 Engine

In the heart of modern compact heavy-duty equipment, the Yanmar 4TNV98 engine, with its 3.319-liter displacement and exceptional mechanical integrity, has become the performance benchmark for 5- to 8-ton excavators, large skid steer loaders, and heavy-duty industrial forklifts worldwide. As the flagship of Total’s new value series, the 4TNV98 not only represents an expansion in displacement volume but also represents Yanmar’s culmination in direct injection (DI) technology, thermal efficiency management, and structural harmonic control. From jianmingmachinery’s perspective, the 4TNV98 is an industrial work of art combining rugged power with micron-level precision. Its 98mm bore and 110mm long stroke design together create a power platform capable of generating explosive torque at low speeds, providing unparalleled power reserves for high-intensity hydraulic operations.

From a combustion engineering perspective, the core technology of the 4TNV98 lies in its precisely optimized direct injection combustion system. Engineers meticulously crafted a uniquely contoured re-entrant combustion bowl at the tip of each 98mm diameter piston using high-precision CNC machining. When high-pressure fuel is forced into the cylinder by a gear-driven mechanical injection pump, the geometry of the piston tip forces the intake air into a violent, directional vortex motion. This controlled turbulence ensures that every drop of diesel fuel is fully atomized within microseconds and uniformly mixed with the compressed air. This highly efficient combustion mode not only gives the engine an extremely flat torque curve, enabling it to exhibit exceptional “lugging power” when dealing with sudden peak loads such as those encountered by excavators against hard rock formations, but also physically reduces particulate matter (PM) generation. This allows this purely mechanically controlled engine to meet stringent environmental standards without relying on complex and expensive aftertreatment systems.

In terms of structural dynamics, the 4TNE98’s cylinder block design embodies the highest standards of industrial-grade durability. To address the immense reciprocating forces generated by the 3.3-liter four-cylinder engine during its power stroke, Yanmar employed a cast iron monolithic cylinder block structure with deep skirts and densely packed heavy-duty reinforcing ribs. This design not only withstands the internal explosive pressure but also physically counteracts third- and fourth-order harmonic vibrations. Since this engine frequently serves as a counterweight or even a load-bearing component of the engine frame in models like the ViO70 and DX80, its high-strength forged steel crankshaft, coupled with five large main bearing housings, forms an extremely rigid rotational support axis. Notably, the 4TNV98 completely abandons the easily aging timing belt or chain, opting instead for a full gear drive chain. This “metal-to-metal” hard link eliminates the risk of valve impact with the piston due to strain or breakage of transmission components in high-temperature, high-dust environments, ensuring absolute synchronization of intake and exhaust timing with fuel injection timing over tens of thousands of hours of operation.

The scientific approach to thermal management and fluid circulation systems is another key secret to the 4TNV98’s legendary lifespan of over 15,000 hours. This engine features a high-capacity cycloidal oil pump that provides stable pressure lubrication to the camshaft tops and connecting rod journals even when operating at extreme tilt angles. Simultaneously, its coolant circulation path has undergone rigorous flow field calculations, with a focus on enhancing heat extraction capabilities in high-temperature areas such as the upper 98mm cylinder liner and valve seats. However, this high performance also places extremely high demands on maintenance procedures. In our actual service cases at jianmingmachinery, we observed that multi-hole direct injection nozzles have near-stringent requirements for fuel purity. If the replacement of the 2-micron high-efficiency filter is neglected, or if the oil-water separator is not drained after daily operation, extremely fine water particles will trigger micro-cavitation during high-pressure injection, leading to nozzle coking or even needle valve seizure. Furthermore, the inherent risk of cylinder liner cavitation in long-stroke engines necessitates the use of high-quality heavy-duty long-life coolant (ELC) to prevent the coolant from forming bubbles on the cylinder liner outer wall, collapsing, and gradually penetrating the metal surface.

For fleet managers and mechanical repair professionals, restoring a 4TNV98 is a precision engineering endeavor aimed at restoring original factory parameters. The tension of each piston ring, the preload of each connecting rod bolt, and the compression of the MLS (multi-layer steel) cylinder head gasket directly determine whether this 3.3-liter power unit can reproduce its factory torque characteristics after restoration. At jianmingmachinery, we are committed to providing high-stress components that are completely consistent with Yanmar’s original engineering drawings, ensuring that every 98mm of cylinder bore combustion space can regain its perfect swirl dynamics after restoration. Choosing parts with precise metallurgical formulations is not just about restoring a machine, but about ensuring that your heavy equipment remains the most reliable production tool on the site for thousands of working hours to come. This insistence on mechanical purity is the core logic behind 4TNV98’s enduring success in the global industrial field for decades.
