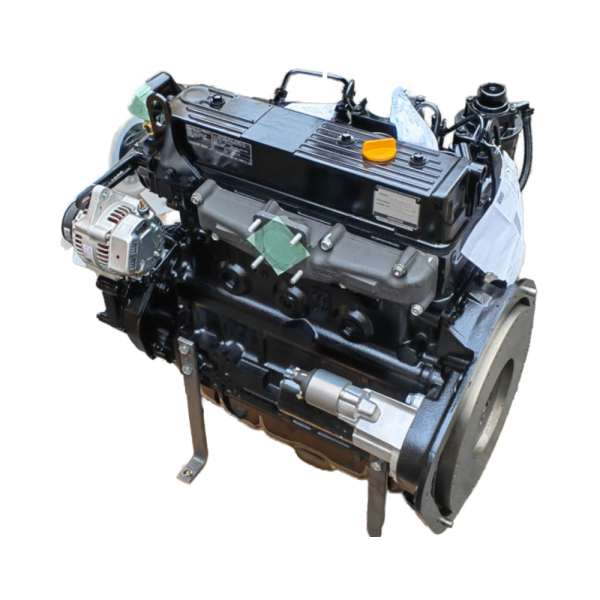

Yanmar 4TNE98 Technical Analysis: 3.3L High-Torque Industrial Power Engine

The Yanmar 4TNE98 engine represents the pinnacle of the TNE series of large-displacement four-cylinder mechanical diesel engines. This liquid-cooled, naturally aspirated engine boasts a displacement of 3.319 liters, a bore of 98 mm, and a stroke of 110 mm, designed specifically for the demanding, high-load conditions of heavy material handling and medium-sized earthmoving machinery. The 4TNE98 is widely considered a core power unit for 3.0 to 3.5-ton industrial forklifts (commonly used by international brands such as Komatsu, Hyundai, and Doosan) and 5 to 6-ton excavators, perfectly balancing compact agility with powerful industrial performance. Unlike smaller general-purpose engines, the 4TNE98 engine is designed with ample structural and cooling space, enabling it to withstand the continuous, high-inertia reversing motions of hydraulic drives and heavy-duty hydraulic lifting operations without experiencing a drop in engine speed. At jianmingmachinery, we understand that the 4TNE98 is more than just an engine; it’s a cornerstone of the global logistics and construction industries. Therefore, meticulous technical standards are essential during maintenance to ensure its exceptional service life of over 15,000 hours.

The 4TNE98 engine’s mechanical advantages stem from its highly efficient direct injection (DI) structure and high-speed combustion mapping. This engine utilizes precision-machined recessed combustion chambers integrated into the top of each 98mm piston, forcing compressed air into a powerful, high-pressure vortex, ensuring near-perfect atomization of the injected diesel fuel. This process is driven by a heavy-duty gear-tied mechanical fuel injection pump that delivers fuel at extremely high pressure, causing the cylinder gases to expand rapidly and controllably, ultimately translating into powerful low-end torque output. This robust direct injection strategy provides the necessary “towing” capability, maintaining the hydraulic system’s proper functioning even when excavator buckets are deep in hard trenches or forklift masts are lifting at maximum tonnage. Furthermore, the incredibly resilient operating provided by the purely mechanical fuel delivery system allows the 4TNE98 to withstand electrical sensor failures and wiring harness aging, which typically cripple modern, fully digital engines in harsh, dusty environments.

To withstand the immense reciprocating forces and thermal loads of the 3.3-liter four-cylinder diesel engine, the 4TNE98 features a deep-skirted cast iron monobloc block designed to eliminate internal harmonics and prevent block deformation. As this engine often serves as a load-bearing structural component in the counterweight zone of heavy machinery, Yanmar engineers equipped it with a high-strength forged steel crankshaft, supported by oversized main bearings and a heavy-duty timing gear train. The 4TNE98 completely eliminates the timing belt or chain, eliminating the risk of catastrophic valve-piston collisions and ensuring perfect synchronization of the critical overhead valve (OHV) timing throughout the engine’s lifespan. Thermal management is equally excellent; the block features large-capacity integrated cooling channels surrounding the 98mm cylinder walls and valve seats, rapidly dissipating the mechanical heat generated during continuous full-throttle operation. However, this high-capacity cooling system places stringent requirements on the coolant’s chemistry; operators must use high-quality heavy-duty long-life coolant (ELC) to prevent cavitation—a destructive phenomenon where collapsing air bubbles slowly penetrate the cast iron cylinder liners, ultimately damaging the engine’s lubrication system.

For fleet managers and heavy equipment refurbishers, sourcing internal components that perfectly match the original Yanmar design drawings is the only way to ensure reliability after overhaul. At jianmingmachinery, we specialize in providing high-stress components for successful refurbishment of 4TNE98 engines, including precision-machined 98mm pistons (with the correct cylinder geometry), high-strength main bearings and connecting rod bearings, and multi-layer steel (MLS) cylinder head gaskets to seal the high cylinder pressures generated by this 3.3L engine block. We understand that forklifts or excavators equipped with 4TNE98 engines are a significant source of revenue and must not fail prematurely due to inferior “generic” aftermarket parts. Our technical support team is dedicated to providing accurate dimensional data and high-quality parts logistics to ensure your Yanmar 4TNE98 engine is restored to its factory-optimal performance and continues to deliver the powerful, high-torque power you need for your industrial operations.
