Yanmar 4TNE94 Technical Analysis: 2.8-liter Direct Injection Industrial Mainstream Engine

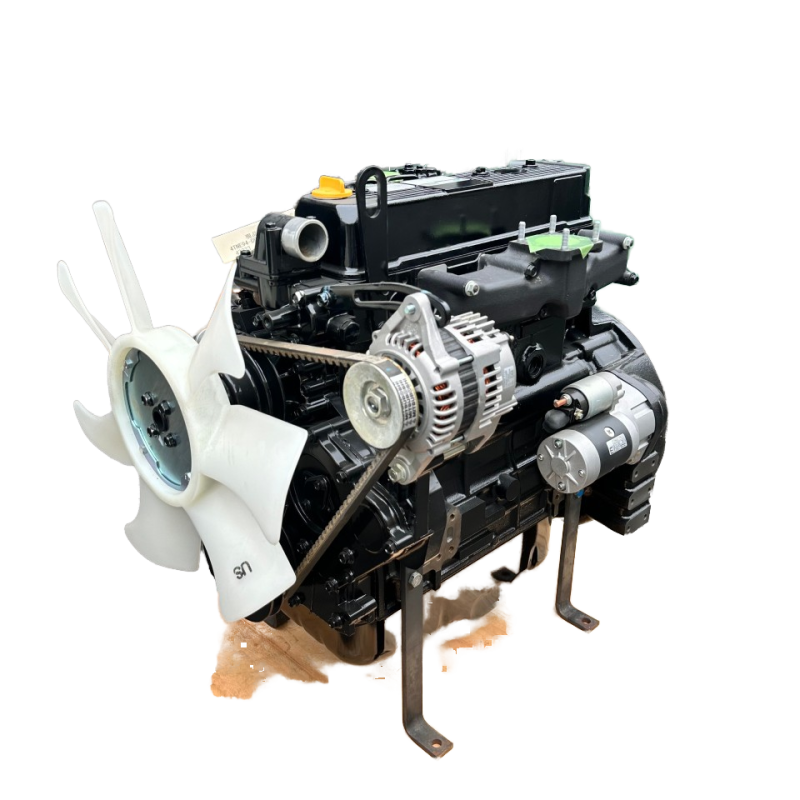

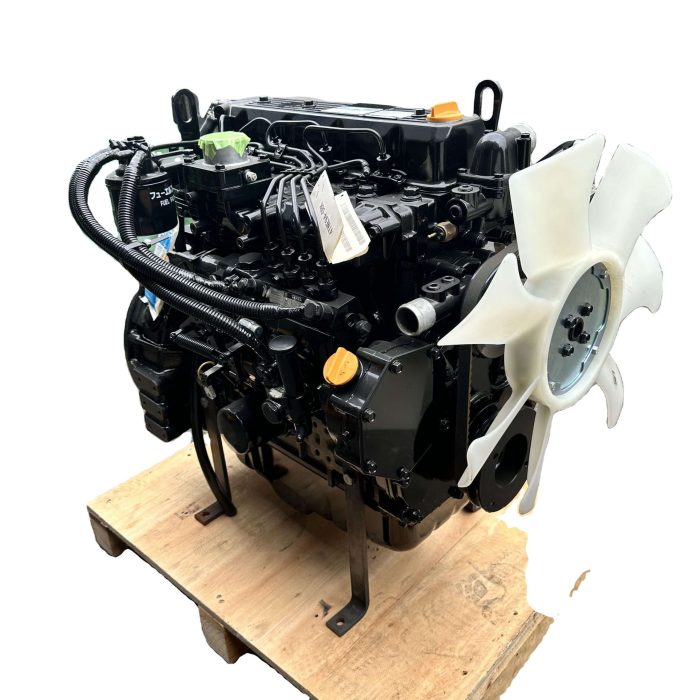

The Yanmar 4TNE94 engine is a milestone achievement in the TNE series. It’s a heavy-duty 2.776-liter four-cylinder liquid-cooled engine designed for demanding material handling and earthmoving applications. With a 94mm bore and 100mm stroke, it’s designed to maximize torque density at low speeds, making it an ideal power source for 2.0 to 3.0-ton industrial forklifts (used by well-known brands like Komatsu and Hyundai) and 4 to 5-ton medium-duty excavators. Unlike light-duty general-purpose engines, the 4TNE94 engine boasts exceptionally high heat capacity and structural rigidity, enabling it to withstand continuous high inertial directional changes in hydraulic transmissions and heavy-duty hydraulic lifting operations. At jianmingmachinery, we believe the 4TNE94 is a fundamental component of global industrial infrastructure, requiring highly technical maintenance and overhaul methods to maintain its legendary reputation for zero downtime reliability under maximum load.

The 4TNE94 engine’s technological advantages stem from its advanced direct injection (DI) architecture and high-speed combustion dynamics. This engine utilizes a specially contoured recirculation combustion chamber machined directly onto the top of each 94mm piston, forcing the incoming air into a violent vortex, thus ensuring near-perfect atomization of the injected diesel fuel. This precision is driven by a heavy-duty gear-tied mechanical fuel injection pump that delivers fuel at extremely high pressure, enabling rapid and controlled expansion of the gas within the cylinder. This efficient direct injection control gives the 4TNE94 engine a unique “dragging” power—maintaining stable speed and continuous hydraulic flow even when the machine mast is lifting its maximum tonnage or when the excavator bucket is striking hard bedrock. Furthermore, this mechanical fuel system provides excellent operational reliability, enabling the engine to effectively withstand electrical sensor failures common in harsh environments in modern fully digital power units.

The structural strength of the 4TNE94 engine benefits from its massive, deep-skirted cast iron monobloc block, designed to counteract the strong internal harmonics produced by the 2.8-liter four-cylinder diesel engine. Since this engine is typically mounted in the counterweight area of ​​forklifts and excavators, it is also a key load-bearing component in the overall machine vibration damping strategy. Yanmar engineers achieved this by using a high-strength forged steel crankshaft (supported by an oversized main bearing) and a heavy-duty gear drive system to drive the camshaft, oil pump, and fuel injection pump. The 4TNE94 engine completely eliminates the timing belt or chain, thus eliminating the risk of catastrophic valve-piston collisions and ensuring that critical intake and exhaust timings remain perfectly synchronized throughout the engine’s entire lifespan. Furthermore, the cylinder block features a large-capacity integrated cooling channel surrounding the upper cylinder walls and valve seats, preventing localized thermal deformation during continuous full-throttle operation and thus avoiding cylinder head gasket failure.

To maximize the 4TNE94 engine’s design life of over 10,000 hours, strict adherence to fluid hygiene and thermal management procedures is essential, particularly regarding the direct injection fuel system and heavy-duty cooling circuitry. The extremely small manufacturing tolerances of multi-hole direct injection nozzles make them highly susceptible to water contamination and abrasive particles. Failure to strictly adhere to 5-micron fuel filtration and daily oil-water separator evacuation can lead to rapid nozzle coking, distorted injection patterns, localized overheating, and potentially even melting of the piston crown. Furthermore, the 4TNE94 engine generates significant mechanical heat under sustained industrial loads, necessitating the integrity of the cooling system’s chemical composition. Operators must use high-quality, heavy-duty coolant to prevent cavitation on the 94mm cylinder liner outer surface. Cavitation refers to the slow penetration of broken bubbles through cast iron, ultimately contaminating the engine oil with coolant.

For fleet managers and heavy equipment refurbishers, sourcing internal components that perfectly match the original Yanmar design drawings is the only way to ensure reliability after overhaul. At jianmingmachinery, we specialize in the specific high-stress components required for refurbishing 4TNE94 engines, providing precision-machined 94mm pistons (with the correct cylinder block geometry), high-strength main bearings and connecting rod bearings, and multi-layer steel (MLS) cylinder head gaskets to seal the high cylinder pressures generated by this 2.8-liter engine block. We understand that forklifts or excavators powered by 4TNE94 engines are a significant source of revenue, and failure on the job site is unacceptable. Our technical support team is dedicated to providing accurate dimensional data and superior parts logistics to ensure your Yanmar 4TNE94 engine is restored to its factory-optimal performance and continues to deliver the robust, high-torque power you need for your operations.
