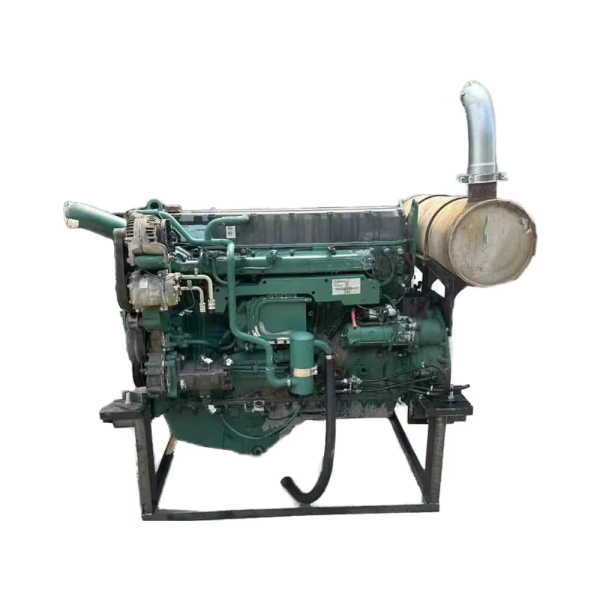

Volvo D12D Engine: The Pinnacle of Heavy Industrial Electronic Control

At the pinnacle of heavy-duty construction machinery power, the Volvo D12D engine, with its massive 12.1-liter displacement and inline six-cylinder architecture, has established its absolute dominance in mining and large-scale earthmoving projects. As a liquid-cooled turbocharged diesel engine designed specifically for extreme heavy-duty conditions, the D12D is widely used in the EC460B heavy-duty tracked excavator, A40D articulated truck, and L220E large wheel loader. Through precise electronic calibration, this engine can stably output an impressive 250 kW to over 350 kW of power within a low-speed range of 1400 to 1800 RPM. In the heavy-duty power research archives of jianmingmachinery the D12D is considered a perfect example of the integration of large-displacement mechanical fundamentals and modern electronic injection technology. Its enormous rotational inertia and unfathomable torque reserve provide unparalleled physical support for high-strength hydraulic systems and heavy-duty transmissions.

The D12D engine’s revolutionary thermal efficiency stems from the deep synergy between its advanced overhead camshaft (OHC) design and electronically controlled individual injector (EUI) system. Unlike traditional distributor pumps or early common rail systems, the D12D utilizes a robust overhead camshaft to directly and mechanically drive the electronically controlled individual injectors at the top of each cylinder, allowing the internal injection pressure to instantly surge to over 2000 bar. This high-pressure direct injection system, precisely controlled in microseconds by the engine control unit (ECU), combined with a highly efficient four-valve-per-cylinder air-fuel mixture, achieves an extremely vigorous and uniform mixing of air and fuel within the 131 mm cylinder bore. This top-tier combustion control logic not only ensures that massive kW-level power is readily available upon operator input but also effectively reduces the extremely high exhaust temperatures that may occur during heavy-load climbing or full-load digging, significantly delaying thermal fatigue damage to the turbocharger impeller.

To withstand the devastating burst pressure generated by the 12.1-liter six-cylinder engine under full load, the D12D’s underlying architecture showcases the highest levels of heavy industrial metallurgical technology. Its cylinder block utilizes ultra-high-strength alloy cast iron with a deep-skirt design, and features wet-type replaceable cylinder liners with precision water seals, greatly facilitating future deep overhauls. The core power transmission is handled by an extremely robust, integral forged steel crankshaft, securely locked within the cylinder block by seven large-size main bearings and equipped with heavy-duty silicone oil dampers to maximize the absorption of the significant torsional resonance generated by the six 131 mm pistons at low speeds. Furthermore, the D12D is equipped with a high-flow dual-gear oil pump, providing continuous forced lubrication and cooling to the high-pressure contact surfaces of the overhead camshaft and the high-load-bearing floating bearings of the turbocharger, ensuring extremely high uptime in harsh open-pit mines.

In actual high-intensity mining operations, the D12D engine’s exceptionally long lifespan relies heavily on extremely stringent fluid hygiene management. Because the piston assembly clearance of the top-mounted electronically controlled unit injector (EUI) is close to the nanometer level, it has “zero tolerance” for water content and particulate matter in diesel fuel. Inferior fuel can quickly cause internal injector jamming or multi-hole nozzle breakage, leading to extremely serious cylinder scoring accidents. At the same time, the high-frequency vibration of large-displacement wet cylinder liners can easily cause destructive cavitation effects on the coolant side. In the overhaul parts supply system of jianmingmachinery we deeply understand the seriousness of the D12D remodeling project. From multi-layer steel (MLS) cylinder head gaskets that can withstand extreme cylinder pressures to 131 mm piston assemblies with precise tolerances and heavy-duty crankshaft bearings, we insist on providing precision parts that meet Volvo’s original geometry parameters, ensuring that this 12-liter industrial behemoth can once again conquer the most demanding operating environments with a perfect roar after the remodeling.
