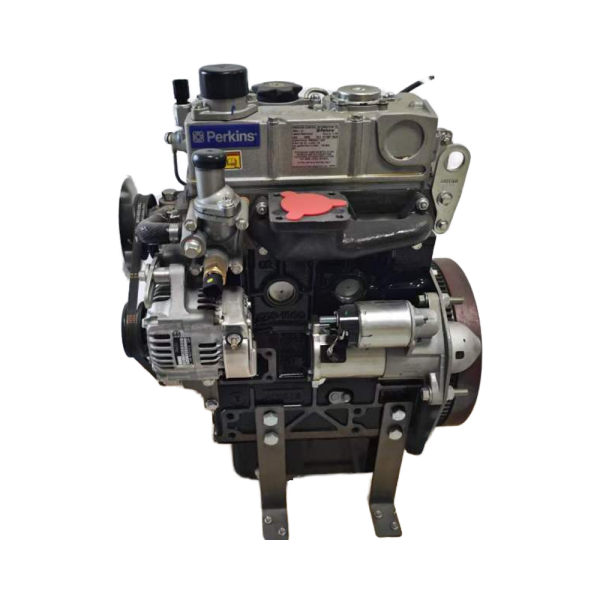

Perkins 403J-11 Engine Technology Analysis and Application Notes
The Perkins 403J-11 engine is the latest generation of Perkins’ light-duty industrial diesel engines, part of the 400J series. It is designed primarily for compact construction equipment, agricultural machinery, generator sets, and various industrial power systems. The design goals of the 403J-11 are crystal clear: compliance with stringent emissions standards such as EU Stage V/EPA Tier 4 Final while maintaining a compact design, stable operation, and low operating costs. It is a lightweight diesel power platform focused on modern emissions standards while also prioritizing reliability.
The 403J-11 features an in-line, three-cylinder, four-stroke, water-cooled design. Its compact dimensions make it ideal for installation in space-constrained applications. The cylinder block is made of high-strength cast iron, providing sufficient rigidity and wear resistance, while the three-cylinder design offers significant advantages in terms of weight and cost. Thanks to optimized crankshaft balancing and combustion management, the 403J-11 engine operates smoothly at low and medium rpm, delivering significantly lower vibration and noise levels than previous small-capacity diesel engines in its class.
In terms of key parameters, the Perkins 403J-11 engine has a displacement of approximately 1.1 liters. Depending on the calibration version, its rated power typically ranges from 18–25 kW (approximately 24–34 hp), with rated speeds typically set between 2,400–2,600 rpm. Rather than relying on high peak rpm, this engine emphasizes low-end torque and stable power output, making it suitable for driving hydraulic pumps, generators, and equipment requiring continuous operation at a constant speed.
The fuel delivery and emissions control systems are the primary areas of upgrade for the 403J-11 engine. This engine utilizes a high-pressure common rail fuel injection system combined with an electronic control unit that precisely regulates injection timing and quantity, resulting in more complete combustion and reduced noise levels. Regarding emissions control, the 403J-11 engine typically utilizes a DOC (diesel oxidation catalyst) and DPF (diesel particulate filter) aftertreatment system to meet Stage V emissions standards. This approach has proven relatively effective in low-power engines, but places higher demands on fuel quality and scheduled maintenance.
In its cooling and lubrication system design, the 403J-11 engine continues to adhere to Perkins’ conservative engineering approach. The water cooling system is sufficiently powerful, maintaining a stable water temperature at high ambient temperatures and under continuous load. A full-pressure lubrication system ensures continuous oil film protection for critical components such as the crankshaft, connecting rods, and camshaft, reducing the risk of wear during long-term operation. This is especially important for small-displacement, high-speed engines.
In practical applications, the Perkins 403J-11 engine is widely used in mini-excavators, skid-steer loaders, agricultural machinery, gardening equipment, small generator sets, and various compact industrial power units. Its small size, light weight, and compliance with emission standards make it ideal for equipment exported to the European and North American markets.
In terms of maintenance and operation, the 403J-11 engine requires higher service standards than earlier models with a mechanical pump, particularly with regard to fuel cleanliness and exhaust gas aftertreatment system management. However, with proper use and regular maintenance, the engine operates reliably, delivers excellent fuel economy, and its total lifecycle cost remains competitive.
Overall, the Perkins 403J-11 engine is a compact diesel power solution designed to meet modern emissions standards. It provides a balance of emissions, efficiency and reliability in the low power range, making it ideal for engineering and industrial applications with high demands on environmental compliance and equipment integration.
