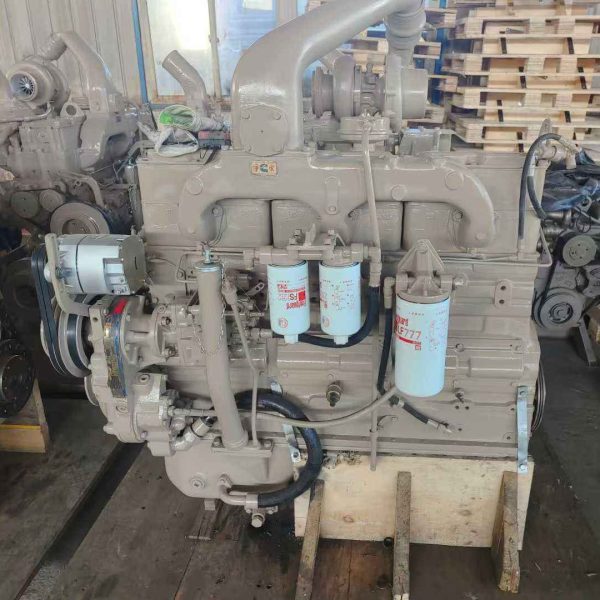

Cummins NT855-C280 engine – A powerful and proven diesel power source for industrial and construction applications.
The Cummins NT855-C280 engine is a classic heavy-duty diesel engine platform from Cummins’ N-Series, widely recognized for its durability, strong torque output, and long service life. Designed specifically for construction machinery, mining equipment, industrial power units, and large generator sets, the NT855-C280 has earned a strong reputation globally for its reliability under harsh operating conditions.
Mechanically, the NT855-C280 is an inline six-cylinder, four-stroke, water-cooled diesel engine. Built around a heavy-duty cast iron cylinder block with a deep-skirt design, it offers excellent rigidity and vibration resistance. The inline six-cylinder layout ensures smooth power delivery and balanced operation, which is particularly important for large hydraulic systems and equipment operating under varying loads.
In terms of core technical parameters, the Cummins NT855-C280 engine has a total displacement of 14.0 liters (855 cubic inches), a bore of 140 mm, and a stroke of 152 mm. The engine is rated at approximately 280 horsepower (about 209 kilowatts), typically reaching peak power at 2100 rpm, while delivering a maximum torque of over 1200 Nm at lower speeds. This torque-oriented performance curve allows the engine to maintain stable power output under heavy loads without excessively high speeds, thus reducing fuel consumption and mechanical stress.
The NT855-C280’s intake system employs either naturally aspirated or turbocharged configurations depending on the application. The C280 model typically uses turbocharging to improve airflow and combustion efficiency. This design enhances power output while controlling exhaust temperature, ensuring stable thermal performance. The combustion system is optimized for durability rather than high-speed performance, consistent with the engine’s heavy-duty application positioning. Fuel supply is controlled by a Cummins PT (pressure-time) fuel injection system, a hallmark of the N-series engines. The PT system uses mechanical controls, is simple in structure, and offers extremely high reliability, making it particularly suitable for environments where fuel quality may vary. Its streamlined design facilitates diagnostics, on-site maintenance, and long-term stable operation, making it ideal for remote or harsh working environments.
The cooling and lubrication systems are meticulously designed to support continuous heavy-duty operation. The NT855-C280 employs a high-capacity water-cooling system designed to maintain stable temperatures under sustained loads. A full-pressure lubrication system, combined with piston cooling injectors, ensures a continuous supply of lubricating oil to critical components such as the crankshaft, bearings, camshaft, and piston assemblies. These systems significantly extend engine life and maintenance intervals.
In practical applications, the Cummins NT855-C280 engine is widely used in large excavators, wheel loaders, mining trucks, drilling rigs, industrial generator sets, and stationary power units. Its robust construction and predictable performance make it particularly suitable for equipment in mining, infrastructure construction, and heavy industrial environments.
From a maintenance and ownership perspective, the NT855-C280 is renowned for its superior maintainability and low life-cycle costs. The mechanical PT fuel system, simple engine layout, and extensive spare parts availability make maintenance easy and convenient. With proper maintenance, correct lubrication, and controlled operating conditions, this engine can achieve very long uptime before requiring a major overhaul.
In summary, the Cummins NT855-C280 engine is a proven heavy-duty diesel engine solution designed for reliability, torque, and durability. Its classic mechanical design, strong global support network, and field-proven performance make it the preferred choice for users who prioritize uptime and long-term durability over system complexity.
