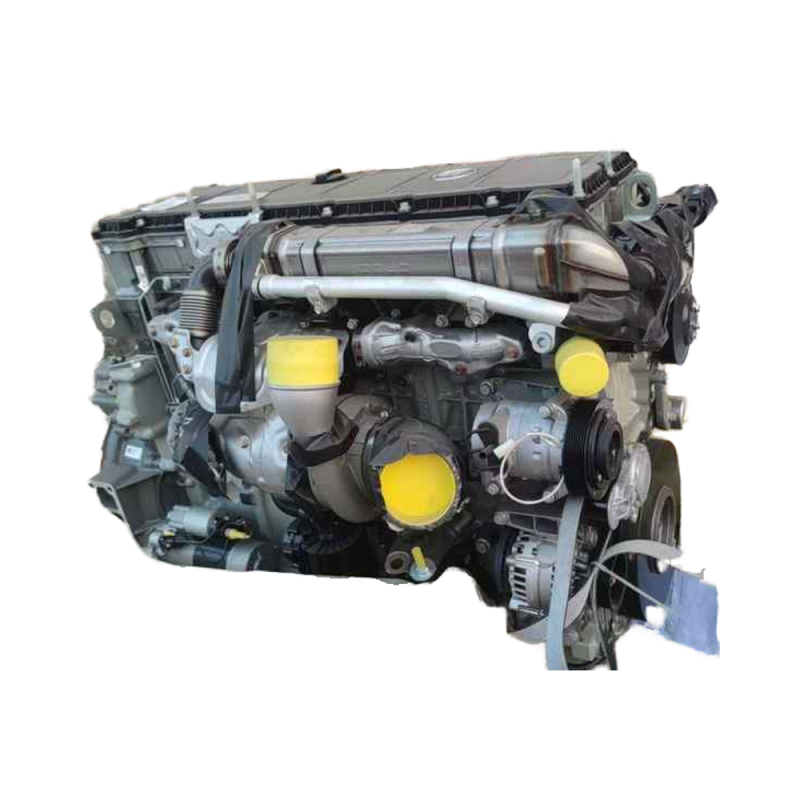

Mercedes-Benz OM470 Engine Lightweight Flagship
In the power matrix of high-end, high-density agricultural machinery, the Mercedes-Benz OM470 engine precisely fills the efficiency gap in the 11-liter class with its extremely demanding lightweight engineering and groundbreaking electronic fluid control technology. As a mainstay of the BlueEfficiency Power next-generation heavy-duty engine family (and also a highly efficient and compact version of the OM471 12.8-liter engine), this 10.7-liter inline six-cylinder, water-cooled diesel engine completely departs from the heaviness and sluggishness of the traditional mechanical era. With a precise 125 mm bore and a golden 145 mm stroke, the OM470, under the command of a highly digital engine management system, can effortlessly output a powerful net power of 240 kW to 315 kW (approximately 326 to 428 horsepower) across a very wide rev range. Its torque output topology, specifically tuned for economical vehicle speeds, allows for the full delivery of its peak torque of 1700 to 2100 Nm within the ultra-low sweet spot of 800 to 1400 RPM. In jianmingmachinery demanding modern industrial fleet performance evaluation system, the OM470’s physical characteristics of “low RPM, high torque, and extremely low weight” provide fleet managers with the most robust dynamic solution for maximizing single-trip capacity and minimizing fuel costs under stringent Euro VI emission standards.
From a deep engineering perspective, considering combustion thermodynamics and precision fluid dynamics, the technological soul of the OM470 engine lies in its globally unique X-Pulse turbocharged ultra-high-pressure common rail fuel injection system and its revolutionary asymmetric turbocharger. To extract the maximum calorific value from every drop of fuel without sacrificing service life, the OM470, above its base common rail pressure (approximately 900 to 1160 Bar), utilizes an internal hydraulic booster amplifier (X-Pulse) to violently push the fluid pressure at the nozzle tip to a physical extreme of 2700 Bar at the moment of main injection. Combined with its four-valve-per-cylinder architecture controlled by dual overhead camshafts (DOHC) and precise splitting control of exhaust gas pulses between the first and rear three cylinders by the asymmetric turbocharger, the high-density intercooled air and nano-atomized diesel fuel within its 10.7-liter displacement achieve unprecedented homogeneous mixing and smokeless combustion. This hybrid architecture, deeply integrating the limits of fluid physics with microelectronic microsecond-level control, not only delivers extremely rapid transient load response but also pushes the engine’s thermal efficiency to a new peak for heavy-duty internal combustion engines.
To seamlessly handle the terrifying 2700 Bar injection pressure and peak cylinder pressure (Pmax) exceeding 200 Bar from the X-Pulse system, the OM470 underwent an extremely rigorous pressure-resistant reconstruction of its underlying mechanical structure and metallurgical engineering. Its basic cylinder block utilizes a highly integrated mesh-reinforced structure and a high-strength special alloy, cast in a single piece. This not only significantly reduces unnecessary physical dead weight but also greatly enhances overall torsional rigidity. More importantly, to cope with extreme burst pressure and heat radiation, the OM470 employs forged steel pistons (instead of traditional aluminum alloy pistons) made from high-strength special steel through laser plasma welding, completely eliminating the risks of piston thermal expansion and ring groove deformation under high loads. This underlying motion mechanism, composed of steel pistons, highly wear-resistant fully water-jacketed wet cylinder liners, and a one-piece forged steel crankshaft anchored by seven heavy-duty main journals, perfectly resolves the extremely high mechanical stress generated by the 145 mm stroke, ensuring core durability at the million-kilometer level.
However, under the harsh conditions of long-term high-load operation in heavy industry and the varying fuel quality across different regions, the OM470’s extremely precise digital control components and its underlying moving parts, which withstand extreme pressure, also face severe wear challenges. When the equipment experiences internal leakage due to wear of the booster plunger inside the X-Pulse injector caused by prolonged use of fuel with substandard particulate filtration, or when abnormal friction occurs between the 125 mm steel piston skirt and the wet cylinder liner due to prolonged extreme loads, the torque response and fuel consumption of this 10.7-liter engine will experience irreversible deterioration. Within jianmingmachinery next-generation electronically controlled heavy-duty engine parts supply chain matrix, we deeply understand the absolute obsession with micron-level tolerances required for this revolutionary engine. We are committed to providing leading global overhaul teams with genuine original X-Pulse ultra-high-pressure common rail injection assemblies, 125 mm heavy-duty steel pistons and wet cylinder liner components with extreme geometric precision, and multi-layer steel (MLS) cylinder head sealing systems capable of withstanding ultra-high explosion pressure. We firmly believe that in dealing with the profound reshaping of such high-precision digital engines, only by strictly adhering to OEM-level part tolerances and fluid calibration specifications can we enable them to unleash their unfathomable electronic traction.
