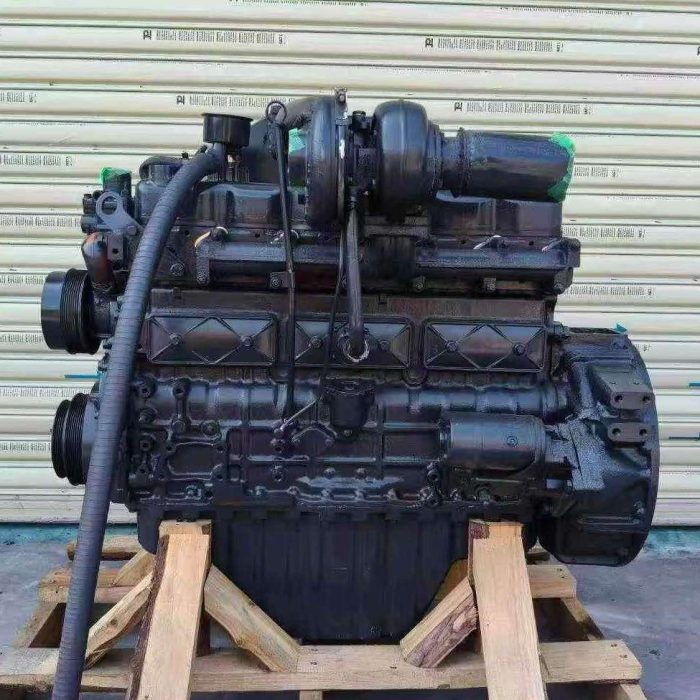

Doosan DB58T Engine, 5.8-liter, mechanical direct injection

During the golden age of 20-22 ton earthmoving machinery, the Doosan DB58T engine, with its extremely reliable purely mechanical architecture and excellent adaptability to various working conditions, forged an indelible industry monument. As a 5.785-liter (commonly referred to as 5.8-liter) inline six-cylinder, water-cooled, turbocharged diesel engine, the DB58T is the heart and soul of Daewoo/Doosan’s DH220LC-7 and DH225LC-7 tracked excavators and the Mega 200 wheel loader. Through a classic mechanical geometry combination of a 102 mm bore and a 118 mm stroke, this engine can stably output a robust power of approximately 115 kW to 120 kW at its rated speed of 2100 RPM. At its optimal speed of 1400 RPM, it can unleash a peak torque of nearly 600 Nm. In jianmingmachinery heavy machinery power evaluation system, the DB58T is a power foundation that perfectly blends mechanical brutality aesthetics with minimalist maintenance logic. Its steep low-speed torque curve provides the hydraulic pump with the most direct and lag-free physical driving force.

From the perspective of fuel injection and thermodynamics, the core appeal of the DB58T lies in its highly mature pure mechanical direct injection (DI) combustion architecture. Completely different from modern electronically controlled high-pressure common rail systems (such as its successor, the DL06), which are extremely demanding on fuel, the DB58T is equipped with an inline mechanical fuel injection pump (large pump) directly driven by the engine timing gear. This fully mechanical speed control system precisely and forcefully controls the fuel supply to each cylinder through the seesaw feedback of physical centrifugal hammers and regulating springs. The turbocharger, propelled by exhaust kinetic energy, forces high-density air into the cylinder. Combined with the deep-recessed direct injection combustion chamber at the piston crown, the DI (Injection Direct Injection) structure allows atomized diesel fuel at hundreds of atmospheres of pressure to mix violently with high-pressure air and ignite within microseconds. This purely mechanical direct injection structure gives the DB58T exceptional fuel versatility, enabling it to maintain high uptime even with high-sulfur or poorly filtered diesel fuel, completely eliminating the vulnerability of electronically controlled engines to frequent fault codes under harsh conditions.

To withstand the intense cylinder combustion pressure generated by the purely mechanical inline pump during rapid acceleration, the DB58T exhibits textbook-level durability in its cylinder block casting and stress distribution. Its basic structure is constructed from high-strength alloy cast iron in a single molding process, and internally equipped with easily replaceable thin-walled dry cylinder liners. This design not only ensures extremely high structural rigidity of the cylinder block itself but also greatly facilitates on-site overhauls in remote mining areas. As the central backbone of the powertrain, a solid forged steel crankshaft, subjected to deep high-frequency quenching, is firmly supported on seven large-sized main bearing seats. This multi-point inline six-cylinder layout inherently possesses perfect balance of primary and secondary inertial forces, allowing the engine to maintain excellent smoothness even under high-speed, full-load operation at 2100 RPM, significantly reducing the risk of early fatigue spalling of the crankshaft main journals and connecting rod bearings.

After tens of thousands of hours of harsh open-pit mining operations, even the most robust machinery faces physical wear on its core components. For the DB58T, the core of its overhaul lies in restoring the perfect airtightness of the DI combustion chamber and the static fuel injection timing of the mechanical fuel injection pump. Excessive wear of the piston rings or internal leakage of the inline pump plunger will directly lead to a precipitous drop in kW power and thick black smoke from the exhaust pipe. Within jianmingmachinery high-precision power component supply matrix, we offer the most stringent original factory-grade remodeling solution for this classic 5.8-liter engine. From the 102mm direct-injection piston assembly with reinforced first wear-resistant ring grooves, to the high-quality cylinder head gasket precisely matched to the original compression ratio, and the connecting rod bushings and heavy-duty crankshaft bearings that withstand high-frequency impacts, we understand that the precise meshing of every micron-level tolerance is the key to giving this classic mechanical behemoth a new lease on life and allowing it to once again tear through the hard permafrost with its powerful exhaust roar.
