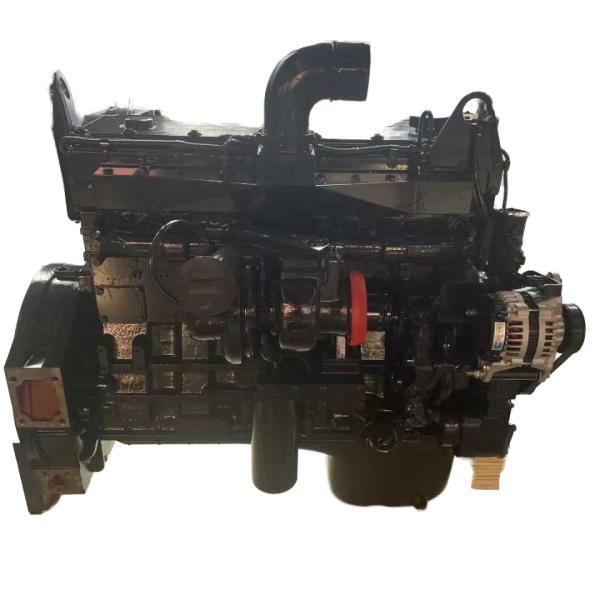

Cummins QSM11 engine, inline 6-cylinder diesel power unit
The QSM11 is a powerful 10.8-liter engine designed to deliver exhilarating torque while maintaining a compact size. jianming Machinery focuses on providing a wide range of heavy-duty components to ensure these 11-liter behemoths are always in top condition.
- Technical Specifications: Unparalleled Performance
The QSM11 is designed for demanding operating conditions.
Displacement: 10.8 liters (661 cubic inches).
Configuration: Inline, 6-cylinder, wet-liner design.
Power Output: 290 hp to 400 hp (216-298 kW) for industrial applications; up to 715 hp for marine applications.
Peak Torque: 1350 lb-ft to 1475 lb-ft (1830–2000 Nm).
Fuel System: CELECT™ electronic unit injection.
- Advanced Engineering Technology for Long Service Life
The QSM11 stands out for its advanced metallurgical technology and electronic integration.
CELECT™ Fuel System: This system uses cam-driven electronic unit injectors. This mechatronic hybrid design enables extremely high injection pressures, resulting in superior throttle response and fuel efficiency.
Articulated Pistons: The QSM11 engine typically uses two-piece articulated pistons with forged steel tops and aluminum alloy skirts. This design allows the engine to withstand higher in-cylinder pressures and temperatures.
Replaceable Wet Cylinder Liners: Like all true Cummins heavy-duty engines, the QSM11 uses wet cylinder liners, making it fully reconfigurable and allowing for multiple service lives.
- High-Impact Applications
The QSL9’s “big brother” is used in some of the world’s most demanding equipment:
Mining and Excavation: Powering 50-70 ton excavators and large wheel loaders, such as the Sany SY750, LiuGong 970, and various modern heavy-duty models.
Marine Propulsion: The QSM11 Marine is the preferred choice for high-speed motor yachts and commercial trawlers, boasting an incredible power-to-weight ratio.
Agriculture: Used for high-horsepower four-wheel-drive articulated tractors and large grain harvesters.
Oil & Gas: Used for driving specialized pumping equipment and power units in oil fields.
- Active Maintenance of the QSM11
To ensure your QSM11’s service life exceeds 15,000 hours, Jianming Machinery recommends focusing on the following key areas:
Valve Clearance Adjustment: Since the fuel injectors are driven by the camshaft, maintaining proper “valve clearance” (valve and injector clearance) is crucial for fuel economy and engine braking performance.
Cooling System Considerations: Due to the wet cylinder liner design, a high-quality coolant containing supplemental coolant additive (SCA) must be used to prevent cylinder liner pitting and cavitation.
Turbocharger Inspection: The QSM11 turbocharger generates a significant amount of exhaust heat. Regularly inspect the turbocharger housing for cracks or the turbine for carbon buildup.
5. Source your QSM11 parts from Jianming Machinery
At jianmingmachinery.com, we understand that if a QSM11 stops operating, the entire site comes to a standstill. We maintain a large inventory of:
Cylinder kits: Genuine pistons, piston rings, and wet cylinder liners.
CELECT injectors: Brand new and refurbished unit injectors, compliant with QSM specifications.
Gasket kits: Upper and lower gasket kits for leak-free engine rebuilds.
Ensure your heavy machinery is always in optimal working condition. For expert technical support and worldwide shipping for Cummins QSM11 parts, please visit jianmingmachinery.com
