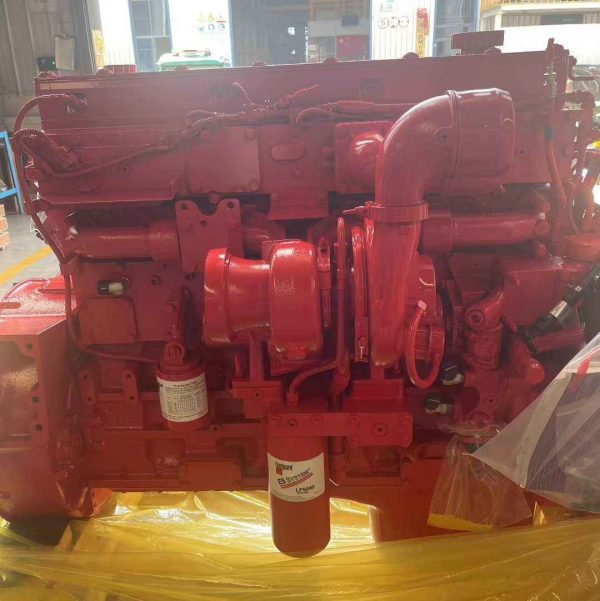

Cummins ISM11 engine, inline 6-cylinder engine
In the realm of heavy-duty power, few engines command the same esteem as the Cummins ISM11. Bridging the gap between medium-duty and large-displacement engines, the ISM11 (M11 platform) achieves a perfect balance between weight, fuel efficiency, and robust torque. Jianming Machinery remains committed to providing high-quality replacement parts for this legendary engine.
- Technical Specifications: Compact Powerhouse
The ISM11 is a 10.8-liter inline-6 engine renowned for its remarkable power-to-weight ratio.
Displacement: 10.8 liters (661 cubic inches).
Power Output: 280 to 500 horsepower (209–373 kilowatts).
Peak Torque: Up to 1,550 lb-ft (2,102 N·m).
Fuel System: Celect Plus™ (Electronic Unit Injection).
Weight: Approximately 2,070 lbs (940 kg) — significantly lighter than 13L/15L competitors.
- Technology Behind the Legend
Unlike the common rail systems in the QSB/QSC series, the ISM11 employs the Celect Plus™ fuel system.
Monoblock injectors: Cam-driven electronic monoblock injectors mechanically generate immense injection pressure. This design is renowned for its durability and exceptional fuel atomization.
Variable Geometry Turbocharger (VGT): Later models incorporate VGT to enhance throttle response and integrate engine braking (VG Turbo Brake), thereby reducing service brake wear.
Electronic Control: An advanced ECM optimizes combustion to meet EPA emissions standards without sacrificing the engine’s characteristic “power.”
- Core Applications
The Cummins ISM11 engine is the preferred choice for specialty vehicles and regional transport applications, where weight reduction translates to profitability:
Construction Trucks: Concrete mixers and dump trucks favor the ISM11 for its lighter weight, enabling heavier payloads.
Garbage Trucks: Waste collection vehicles rely on its durability to withstand frequent stop-and-go cycles.
Regional Haul: Day cab tractors and fire trucks.
Note: The ISM11 is the highway variant of the QSM11, which powers excavators and loaders. Many internal components are shared between the two.
- Maintenance: Keeping the M11 Running Strong
To maintain ISM11 reliability, focus on these key areas:
Valve Clearance Adjustment: Since injectors are cam-driven, maintaining proper valve and injector clearances is critical. We recommend valve clearance adjustment every 2,000 operating hours or 100,000 miles.
EGR System: In newer models, the EGR valve may accumulate soot buildup. Regular cleaning prevents performance degradation.
Fuel Quality: While the monoblock injector delivers robust performance, it still requires clean fuel. Replace filters regularly to prevent plunger scoring.
- Your ISM11 Parts Partner: jianming Machinery
As fleets age, sourcing quality parts for the ISM11/M11 platform grows increasingly difficult. jianming Machinery fills this gap. We stock:
Fuel System Components: Refurbished and new Celect Plus injectors and fuel pumps.
Engine Kits: Cylinder kits (pistons, liners), gasket sets, and bearings.
Turbochargers: Holset VGT replacements.
Keep your commercial fleet running smoothly. For reliable parts and technical support for your Cummins ISM11 engine, visit jianmingmachinery.com.
