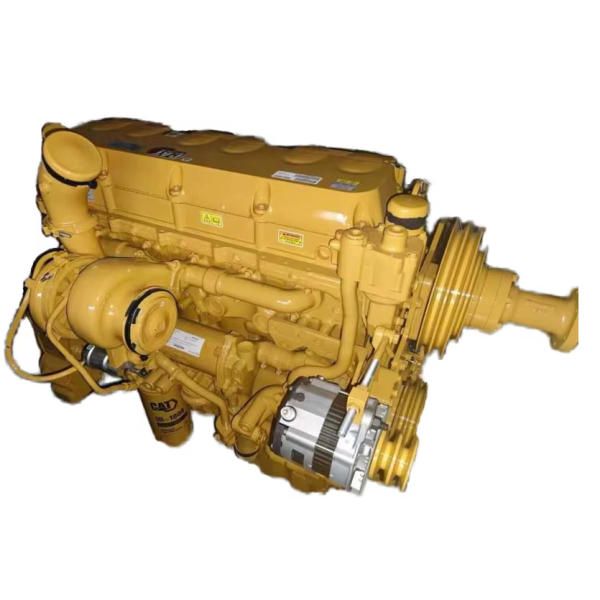

Caterpillar C13 engine, inline six-cylinder heavy-duty diesel engine
The Caterpillar C13 engine is a 12.5L inline six-cylinder heavy-duty diesel engine designed for high-load, long-duration continuous operation in engineering, mining, power generation, and industrial equipment. As the core model in the CAT C series, the C13 achieves a high balance between power output, reliability, and global adaptability, making it the preferred power solution for many OEMs and end-users in medium to large-sized equipment.
In practical applications, its overall performance often covers some of the operating requirements of the C15, while offering advantages in fuel consumption, maintenance costs, and equipment compatibility.
Engine Parameters and Technical Specifications
From an engineering perspective, the C13’s performance boundaries are very clear, classifying it as a true heavy-duty platform:
Engine Model: Caterpillar C13
Engine Type: Four-stroke inline six-cylinder diesel engine
Displacement: 12.5 liters
Intake Method: Turbocharged and intercooled
Rated Power Output: Approximately 370 – 525 hp (depending on application)
Maximum Torque: 2,200 – 2,600 N·m
Rated Speed: 1800 – 2100 rpm
Fuel System: Electronic single-unit injection/Common rail (depending on version)
Cooling System: High-capacity water-cooled system
Lubrication Method: Full-pressure forced lubrication
Emission Standard: Stage III/Stage IV Final/Stage III A-V
These parameters indicate that the C13’s core design focus is not on “short-term bursts of power,” but rather on continuous, highly stable torque output, making it ideal for equipment with fluctuating hydraulic system loads.
Power Output and Combustion Characteristics
The C13 employs a large bore and long stroke design, coupled with a high-efficiency turbocharger and intercooler system, enabling the engine to deliver strong torque even at low speeds. This characteristic is particularly crucial for excavators, loaders, mining trucks, and generator sets, as it significantly reduces the thermal load and mechanical wear caused by prolonged high-speed engine operation.
The electronically controlled fuel system ensures precise and controllable injection timing and quantity, optimizing combustion efficiency while maintaining power. Compared to older mechanical injection platforms, the C13 offers significant improvements in fuel consumption control, smoke emission, and engine response.
Durability, Thermal Management, and Reliability
From an engineering reliability perspective, the C13 is designed for continuous operation:
A solid cast high-strength cylinder block and reinforced crankshaft and connecting rod structure allow the engine to withstand high pressure and heavy load impacts over extended periods; a high-capacity cooling system and optimized water channel design ensure stable operating temperatures even in high-temperature, heavy-load, and dusty environments; and a full-pressure lubrication system provides continuous oil film protection for critical moving parts, significantly reducing the risk of abnormal wear. This is why the C13 enjoys an excellent reputation in mines, ports, oil fields, and large construction sites.
Maintenance Strategy and Operating Costs
Although the C13 is a heavy-duty platform, its maintenance logic still follows CAT’s engineering philosophy: predictable, plannable, and cost-controllable 🛠️.
Long routine maintenance cycles, modular design of key components, and a mature global spare parts supply system ensure low downtime risk and stable total cost of ownership (TCO) throughout the equipment’s lifecycle.
For long-term operational projects, the value of the C13 lies not only in its power output but also in its stable uptime and long-term maintainability.
Typical Applications
The Caterpillar C13 is widely used in:
Medium and large excavators and wheel loaders
Mining and port engineering equipment
Industrial and marine generator sets
Oilfield, drilling, and heavy-duty industrial power systems
Specialty engineering machinery and large pumping stations
It is a truly heavy-duty diesel engine suitable for the global engineering market 🌍.
Jianming Machinery – Your trusted C13 engine partner 🔧🌍
Jianming Machinery offers complete Caterpillar C13 engines, new and used, as well as a full range of original/high-quality replacement parts, including injectors, turbochargers, cylinder blocks, crankshafts, cylinder heads, overhaul kits, etc., and can provide selection and replacement advice based on equipment operating conditions.
If you are looking for a heavy-duty engine that balances power, reliability, and long-term operational value, the C13 is a highly engineering-driven choice.
