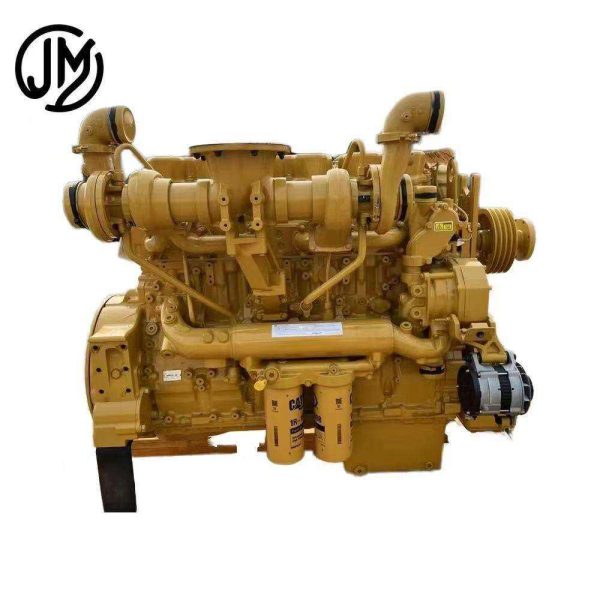

Caterpillar C18 engine powerful, heavy-duty diesel engine
The Caterpillar C18 engine is an 18.1L inline six-cylinder heavy-duty diesel engine, representing one of CAT’s highest levels of maturity in large-displacement, high-reliability industrial power systems. The C18 is not simply about horsepower figures, but rather a holistic engineering design focused on structural strength, thermal stability, and lifespan redundancy under extreme loads. It is widely used in mining, large-scale power generation, oil and gas, port, and special engineering equipment.
Within the CAT C series, the C18’s design is very clear: the larger displacement is not for higher engine speeds, but for withstanding lower mechanical stress at the same power output, thus achieving truly long-term reliable operation.
Engine Parameters and Technical Specifications
From an engineering perspective, the C18 is a typical low-stress, high-redundancy heavy-duty platform:
Engine Model: Caterpillar C18
Engine Type: Four-stroke inline six-cylinder diesel engine
Displacement: 18.1 liters
Intake Method: Turbocharging and intercooling
Rated Power Output: approx. 500 – 800 HP (depending on rating and application)
Maximum Torque: 2,800 – 3,500 N·m
Rated Speed: 1800 – 2100 rpm
Fuel System: Electronic unit injection/high-pressure electronic system
Cooling System: Large-capacity water-cooled system
Lubrication Method: Full-pressure forced lubrication
Emission Standards: Tier 2 / Tier 3 / Tier 4 Final / Stage V (region-dependent)
These parameters clearly indicate that the C18’s advantage lies not in its “maximum output,” but in its long-term full-load stability and the smoothness of its lifespan curve.
Power Output and Combustion Strategy
The C18 engine features an extra-large bore and long stroke, coupled with a high-efficiency turbocharger and intercooler system, enabling it to deliver extremely high torque across a low to medium RPM range. This characteristic is particularly critical for mining equipment, large generator sets, and oil and gas equipment, as these operating conditions often do not allow for frequent RPM fluctuations or power interruptions.
The electronically controlled fuel system ensures that injection pressure, injection timing, and injection quantity are precisely matched to load requirements, effectively controlling combustion temperature and mechanical shock while guaranteeing strong power, thereby extending the service life of core components.
Structural Strength and Thermal Management
From a structural engineering perspective, the C18 is an engine designed for extreme environments:
An ultra-high-strength cast iron cylinder block, enlarged main bearings, and reinforced crankshaft and connecting rod system ensure structural stability even under sustained high-pressure conditions; a large-capacity cooling system and optimized water channel design ensure that the engine’s thermal state remains controllable under high ambient temperatures, high altitudes, and prolonged full-load conditions; and a full-pressure lubrication system provides a stable oil film for all critical friction pairs, significantly reducing the risk of abnormal wear. This is precisely the fundamental reason why the C18 can serve for extended periods in high-risk environments such as mines, power plants, and oil fields.
Maintenance Philosophy and Lifecycle Value
Although the C18 is an ultra-heavy-duty platform, its maintenance logic still follows CAT’s core principles: predictable maintenance, modular repair, and global support 🛠️.
Long maintenance cycles, assessable lifespan of key components, and a mature parts supply system ensure extremely high operational stability throughout its entire lifecycle.
For truly large-scale projects, the value of the C18 lies not in its initial cost, but in its extremely low probability of unplanned downtime and long-term asset security.
