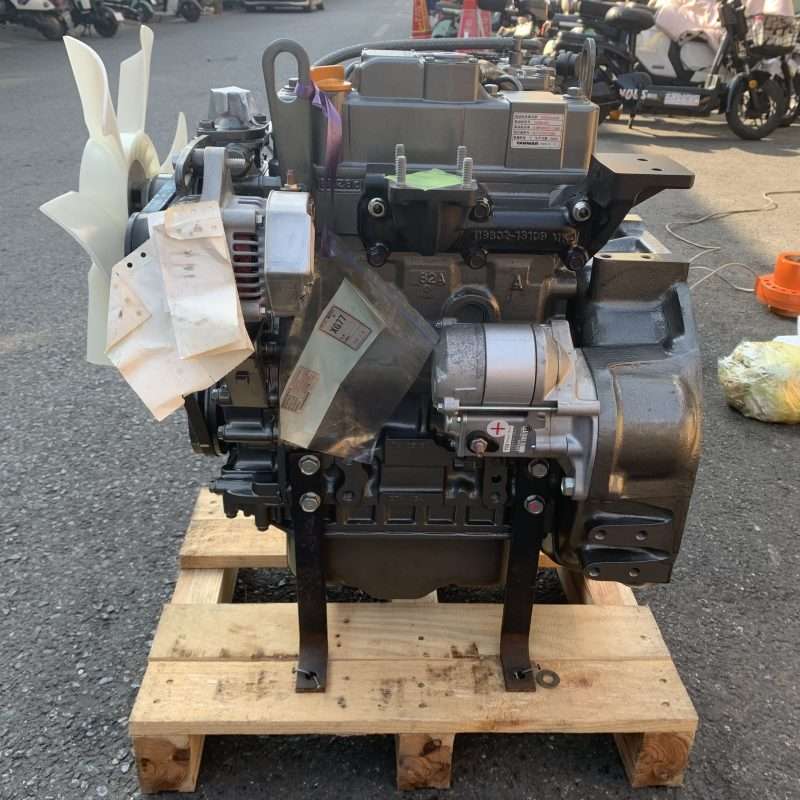

Yanmar 3TNV82A Engine Technical Analysis
The Yanmar 3TNV82A engine is a significant engineering milestone in the 1.3-liter displacement engine segment. It’s a highly efficient direct injection (DI) engine and the flagship of Total’s New Value (TNV) mid-range engine lineup. This three-cylinder, liquid-cooled engine features a precisely designed 82mm bore and 84mm stroke to maximize thermal efficiency while maintaining the compact size required for modern small machinery. Unlike smaller indirect injection engines, the 3TNV82A employs an advanced recessed combustion chamber integrated directly on top of the piston, resulting in a more localized and complete air-fuel mixture. This design is key to the engine’s ability to deliver high torque at low speeds, providing the necessary “digging force” for hydraulically intensive applications such as 2.5-ton mini excavators and heavy-duty multi-purpose tractors. At jianmingmachinery, we believe the 3TNV82A is a model of direct injection technology, requiring specialized technical approaches to ensure a perfect balance in its complex mechanical and thermal cycles.
The core technologies driving the 3TNV82A engine’s performance lie in its high-pressure direct injection system and optimized swirl ratio. By precisely controlling the injection timing, the 3TNV82A achieves near-complete fuel combustion, significantly reducing fuel consumption and particulate emissions into the exhaust system. The engine employs a gear-driven in-line fuel injection pump with exceptional resistance to mechanical wear, capable of handling the mechanical abrasion common in high-intensity industrial applications. This mechanical timing is synchronized with a high-durability valve mechanism, ensuring a perfect match between intake and exhaust cycles and the 1.331-liter displacement. This results in an early and stable peak power curve, ensuring stable hydraulic flow even under high loads from cooling fans and auxiliary hydraulic pumps, as seen in the Yanmar ViO30, Takeuchi TB23R, and various John Deere mini tractors.
The structural durability of the 3TNV82A engine benefits from its heavy-duty monolithic cast iron design and advanced NVH (noise, vibration, and harshness) damping technology. While traditional large-bore three-cylinder engines are prone to secondary vibrations, Yanmar engineers have effectively mitigated this issue by using a deeply skirted crankcase with reinforced ribs and a high-strength forged steel crankshaft. This structural rigidity ensures the engine block does not become a resonator for combustion noise, resulting in extremely quiet operation, crucial for equipment used in noise-sensitive urban areas. Furthermore, the 3TNV82A is equipped with a dedicated lubrication circuit, including a high-capacity cycloidal oil pump and a full-flow filtration system. This ensures that critical journals and camshaft cams receive continuous pressurized lubricant even during high-incline operations (such as hillside landscaping or trenching), preventing localized frictional heat and catastrophic bearing failure.
To maintain optimal technical performance of the 3TNV82A engine, strict control over fuel hygiene and cooling system chemistry is essential. Due to the micro-nozzles used in the 82mm direct injection system, tolerance for water contamination or inferior diesel fuel is extremely low. At jianmingmachinery, we emphasize that using substandard 10-micron filters can cause fine abrasive particles to “sandblast” the injector nozzles over time, distorting the spray pattern and leading to piston top scouring or localized overheating. Furthermore, the 3TNV82A’s liquid cooling system employs a high-precision water jacket design to provide maximum heat dissipation for the 1.3-liter cylinder block. If the correct coolant filler additive (SCA) is not added to the coolant, the 82mm cylinder liners may suffer from cavitation—tiny air bubbles impacting the cylinder liner walls and “bursting,” ultimately leading to coolant leakage into the oil passages. Only proactive maintenance using genuine-spec thermostats and high-efficiency water pumps can guarantee the engine’s design life exceeding 8,000 hours.
For businesses seeking a comprehensive overhaul of their Yanmar 3TNV82A engines, sourcing metallurgically precise components is crucial to successful repairs and preventing premature failure. At jianmingmachinery, we offer expert technical support and a large inventory of 3TNV82A-specific parts, including precision-honed cylinder liners, high-temperature alloy valve assemblies, and complete gasket kits containing multi-layer steel (MLS) cylinder head gaskets to meet direct injection combustion pressure requirements. We understand that the 3TNV82A engine is often the “main engine” of your profitable fleet. Our technical team is dedicated to providing precise specifications and high-quality components to help restore your engines to their factory performance, ensuring that your Yanmar power equipment can continue to deliver efficient and reliable power from TNV series engines.
