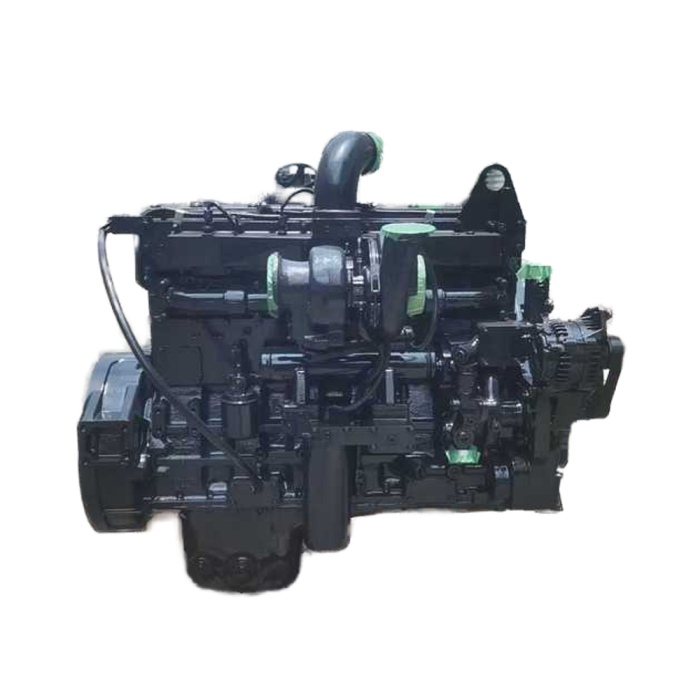

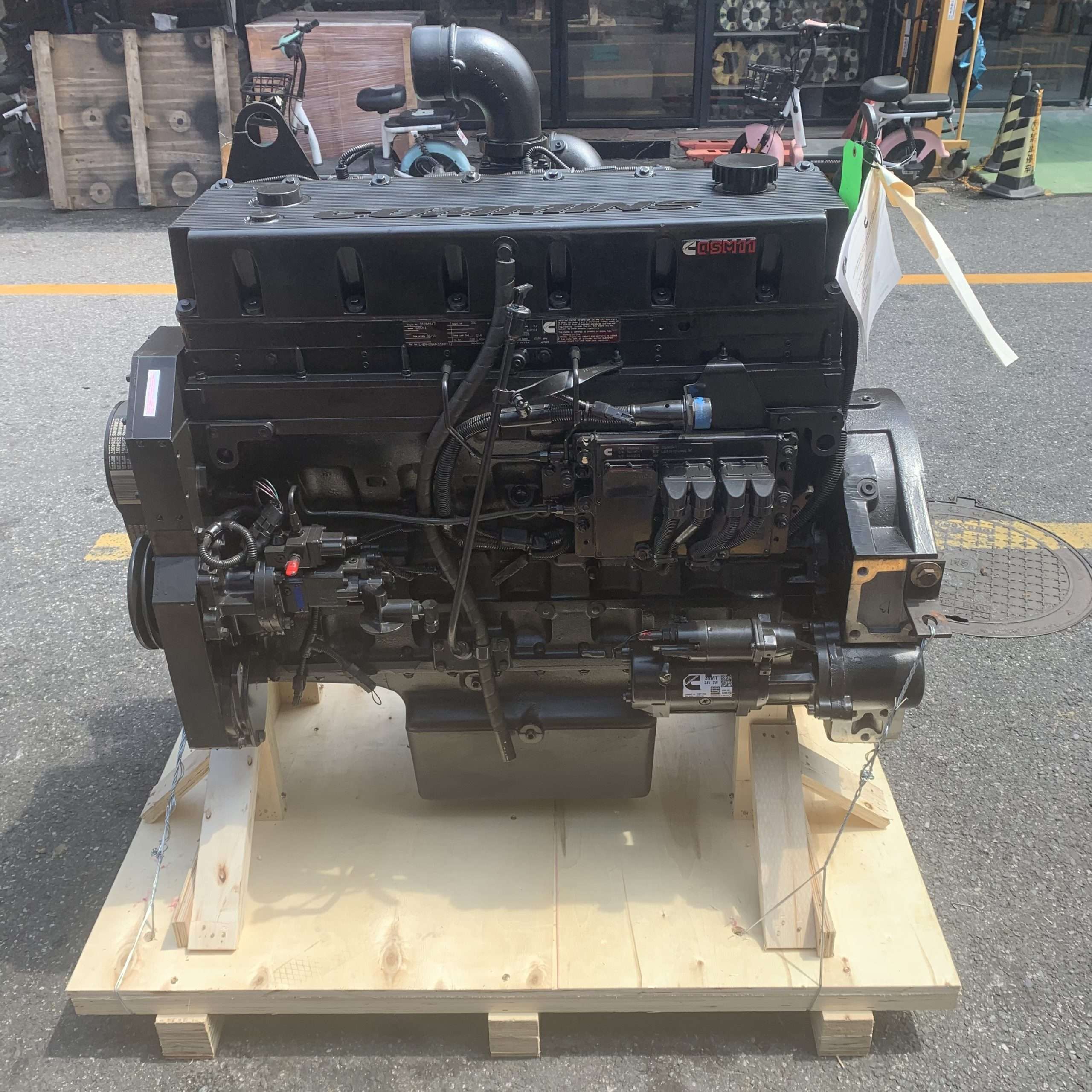

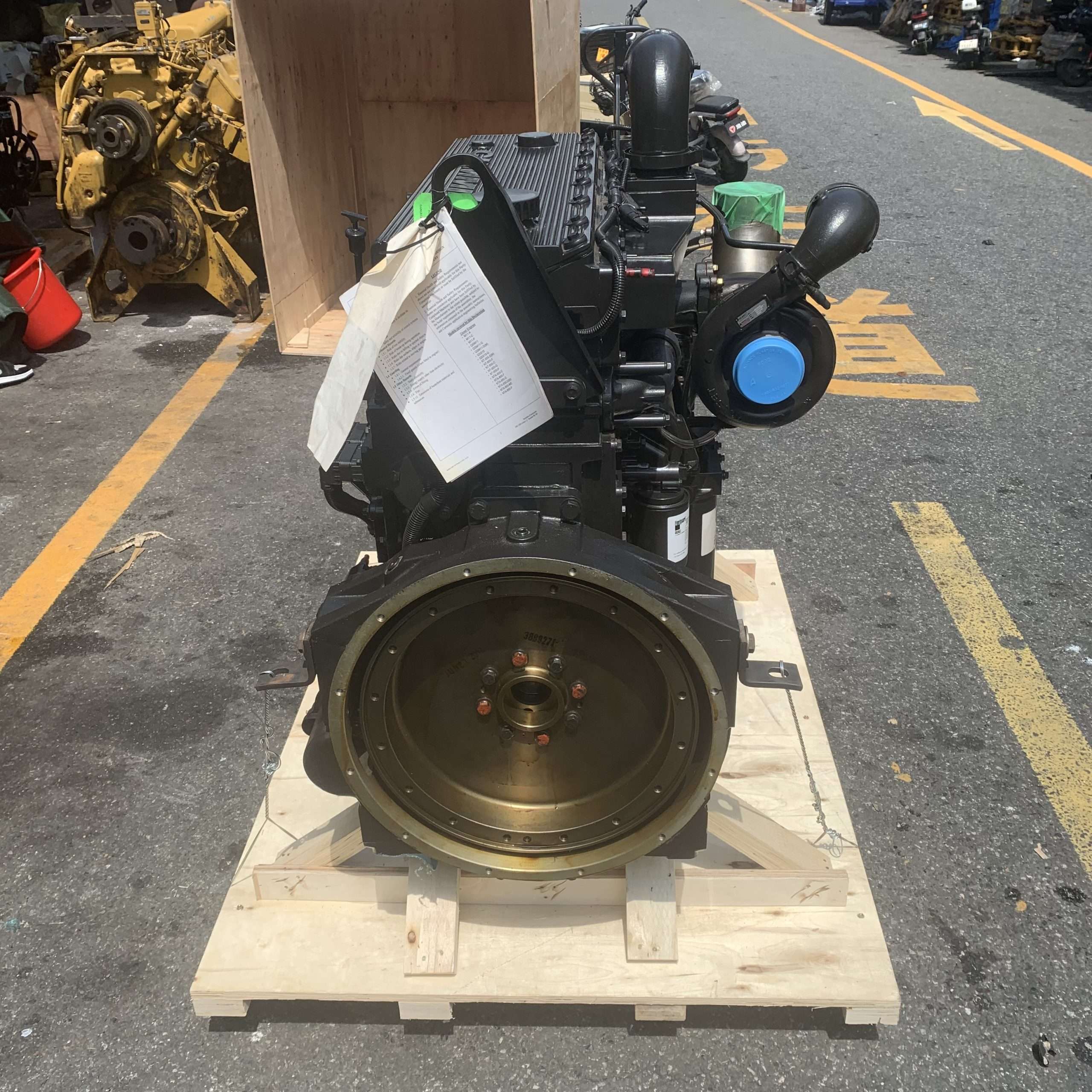

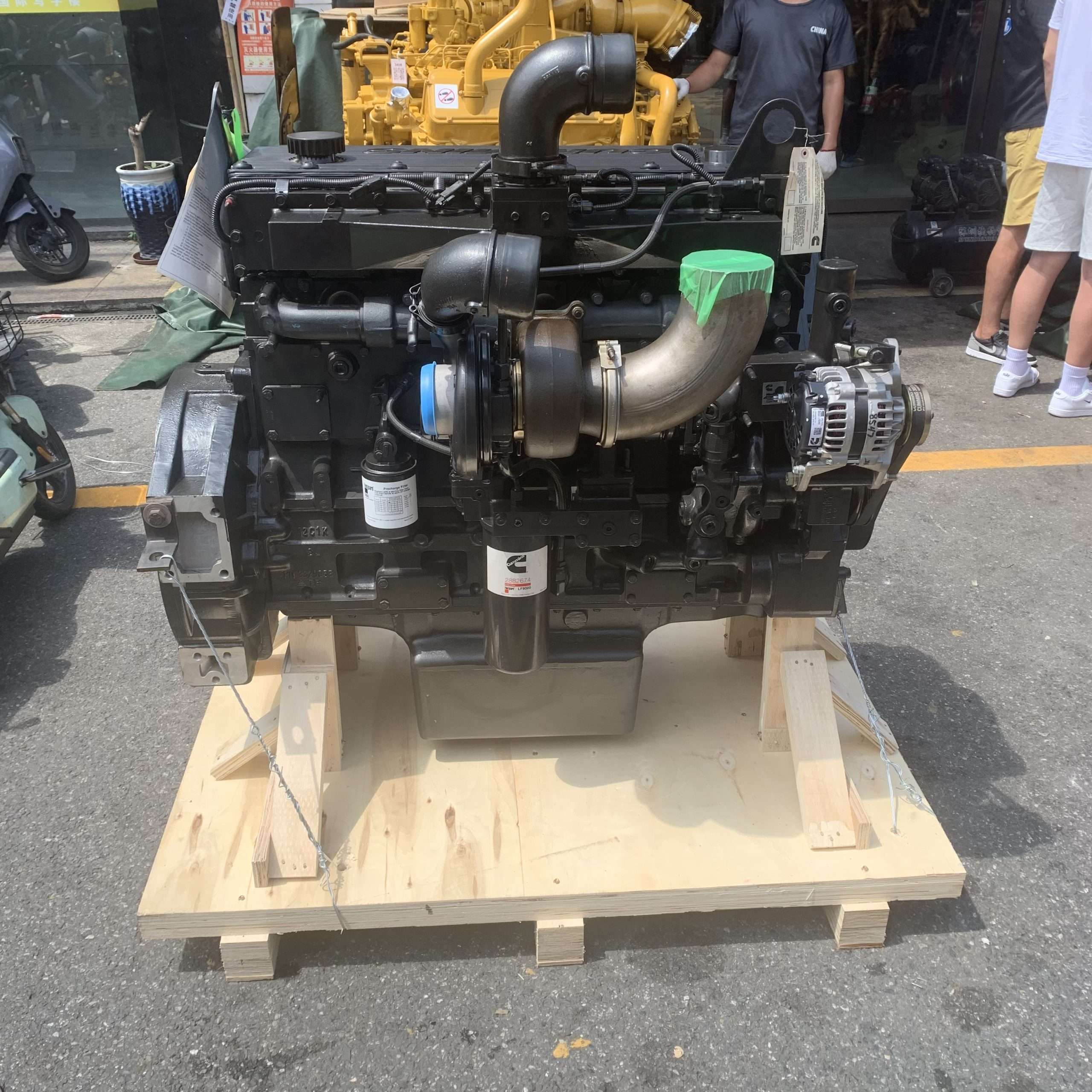

QSM11 diesel engine for cummins QSM11 engine

The QSM11 engine is a high-performance, heavy-duty diesel engine produced by Cummins, which is widely used in construction equipment, agricultural machinery, generator sets, heavy trucks and other fields. While providing strong power output, the QSM11 engine also focuses on fuel economy and emission control. The following are the main performance characteristics of the QSM11 engine:

1. Basic parameters
Displacement: 11 liters (11,000cc)
Number of cylinders: 6 cylinders in-line
Engine type: four-stroke, turbocharged, internal combustion diesel engine
Cooling method: water cooling
Fuel system: High-pressure common rail (HPCR) fuel injection system to ensure precise fuel injection and efficient combustion
2. Power output and torque
Rated power: The power range of the QSM11 engine is generally 280-450 horsepower (about 209-336kW), and the specific output power depends on the specific model and application.
Maximum torque: In the range of 1200-1600 Nm, which enables the QSM11 to provide excellent low-speed torque output, suitable for heavy-duty applications requiring large torque.
Speed ​​range: The normal operating speed is 1800-2200 RPM, which is suitable for a variety of operating environments, ensuring that the engine can provide efficient power while maintaining low fuel consumption.
3. Fuel economy
Optimize fuel efficiency: The QSM11 engine is equipped with a high-pressure common rail fuel injection system (HPCR), which can accurately control each injection cycle, improve combustion efficiency, reduce fuel consumption, and thus improve fuel economy.
Long-term efficient work: Suitable for long-term load working environment, can effectively reduce fuel consumption and reduce operating costs.
4. Emission control and environmental protection
Comply with Tier 3/Stage IIIA emission standards: The QSM11 engine complies with the emission standards of the US Environmental Protection Agency (EPA) Tier 3 and European Stage IIIA, and can effectively reduce the emission of nitrogen oxides (NOx), hydrocarbons (HC) and particulate matter (PM).
Exhaust after-treatment system: Some models of QSM11 are equipped with a selective catalytic reduction (SCR) system and a diesel exhaust recirculation (EGR) system to further reduce harmful gas emissions and ensure compliance with strict global emission regulations.
5. Reliability and Durability
High Durability Design: QSM11 uses reinforced components such as cast iron cylinder block, aluminum alloy cylinder head, reinforced piston and cylinder liner, etc., which enhance the durability of the engine and can run stably for a long time under harsh working conditions.
Optimized Cooling System: With an efficient cooling system, the engine can maintain a stable temperature under high load, thereby extending the engine life.
6. Applicable Fields
Construction Equipment: Such as excavators, bulldozers, loaders, etc.
Agricultural Machinery: Such as tractors, combine harvesters, etc.
Generator Sets: Widely used in various backup power supplies and emergency power supplies.
Heavy Trucks and Transport Vehicles: Suitable for long-distance transport vehicles and heavy trucks, etc.
Mining and other heavy-duty applications: QSM11 is also used in mining equipment, garbage compactors, etc.
7. Operational Performance
Smooth Power Output: The QSM11 engine can provide smooth and continuous power output, suitable for stable operation in working environments with large load changes.
High starting torque: Even under extreme load, the QSM11 engine can still provide high starting torque to ensure smooth equipment startup.
8. Maintenance and care
Long maintenance intervals: The QSM11 engine design focuses on reducing maintenance frequency and costs, extending maintenance intervals, and reducing downtime. Regularly replacing basic maintenance items such as oil and filters can ensure long-term stable operation of the engine.
Convenient maintenance service: As a Cummins brand engine, the QSM11 has a global service network and sufficient spare parts supply, which facilitates rapid repair and maintenance of equipment.
9. Other technical features
Intelligent control system: The QSM11 is equipped with an advanced electronic control system that can dynamically adjust fuel injection and intake volume according to the working environment and load, further improving engine performance and fuel efficiency.
Integrated electronic system: The integrated electronic system can monitor various engine parameters such as temperature, pressure, speed, etc. to ensure that the engine always operates in the best condition.
