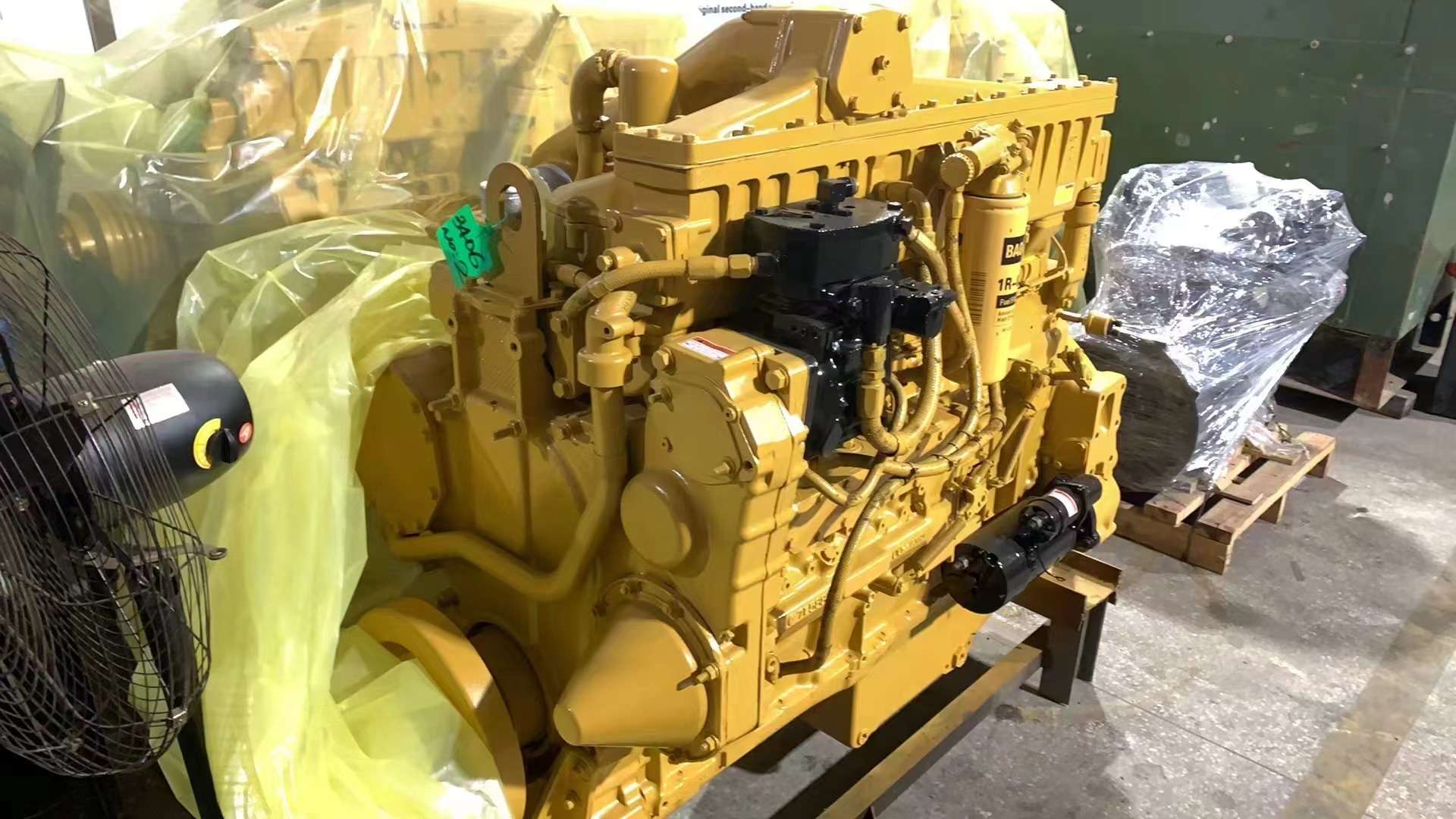

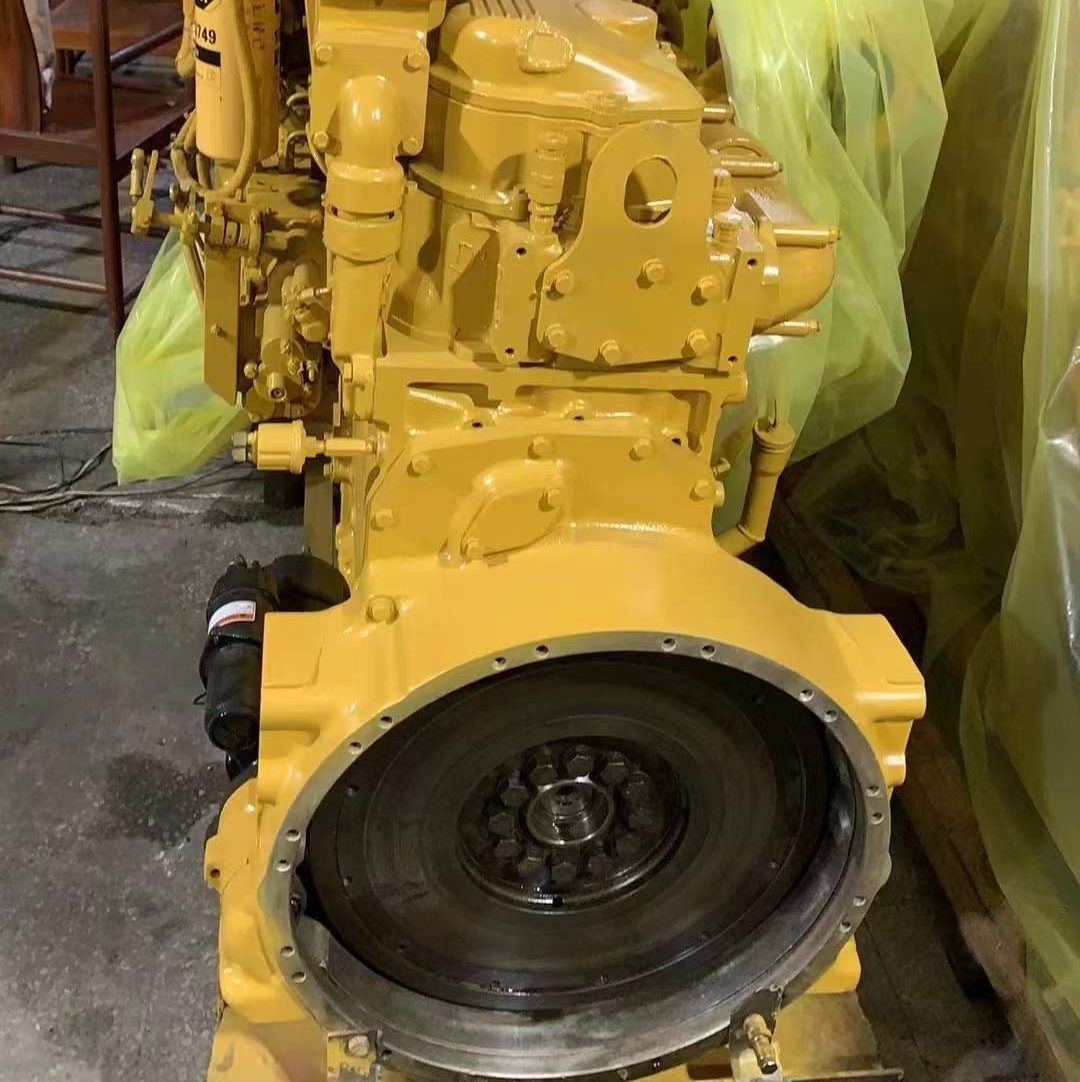

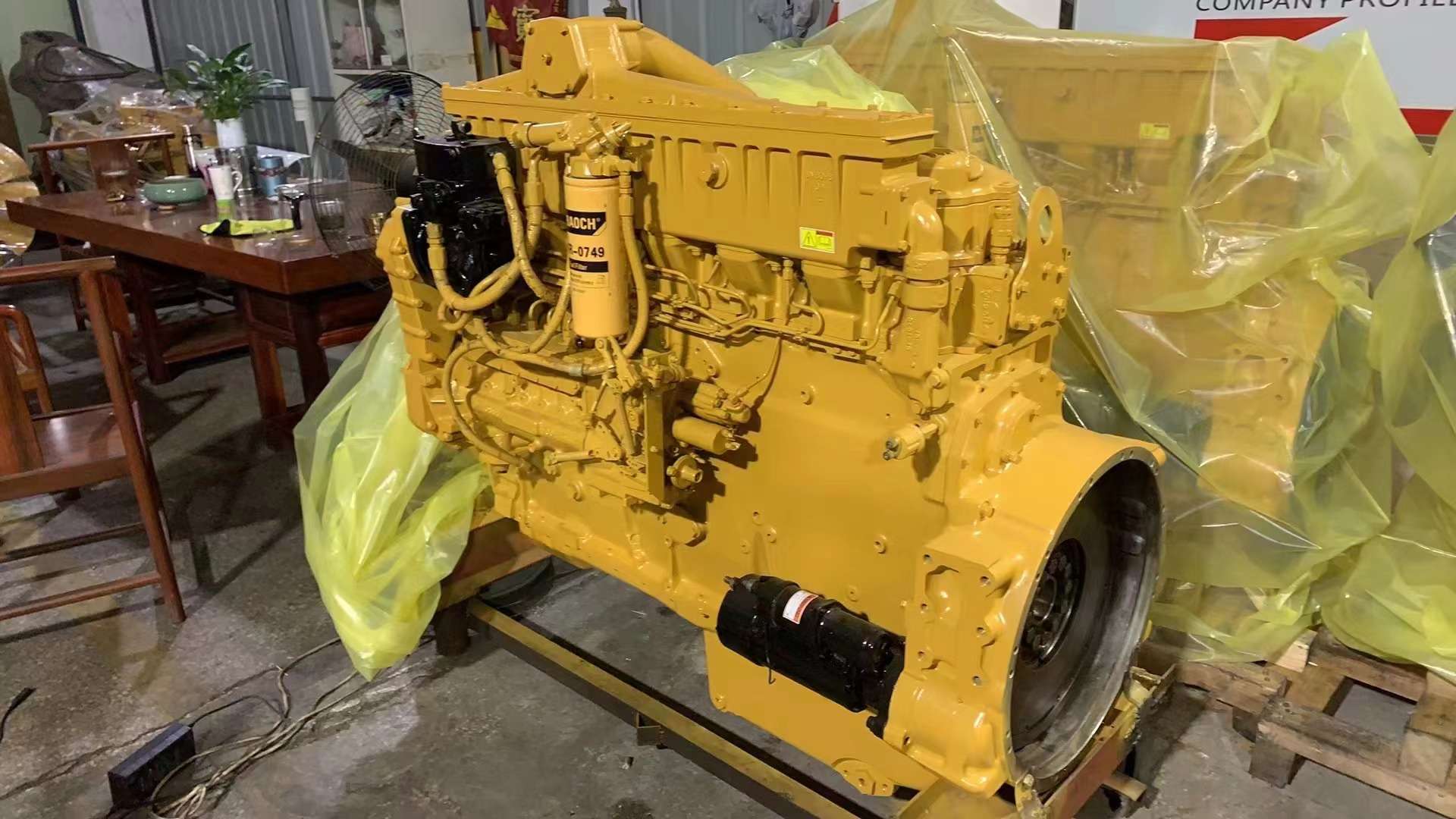

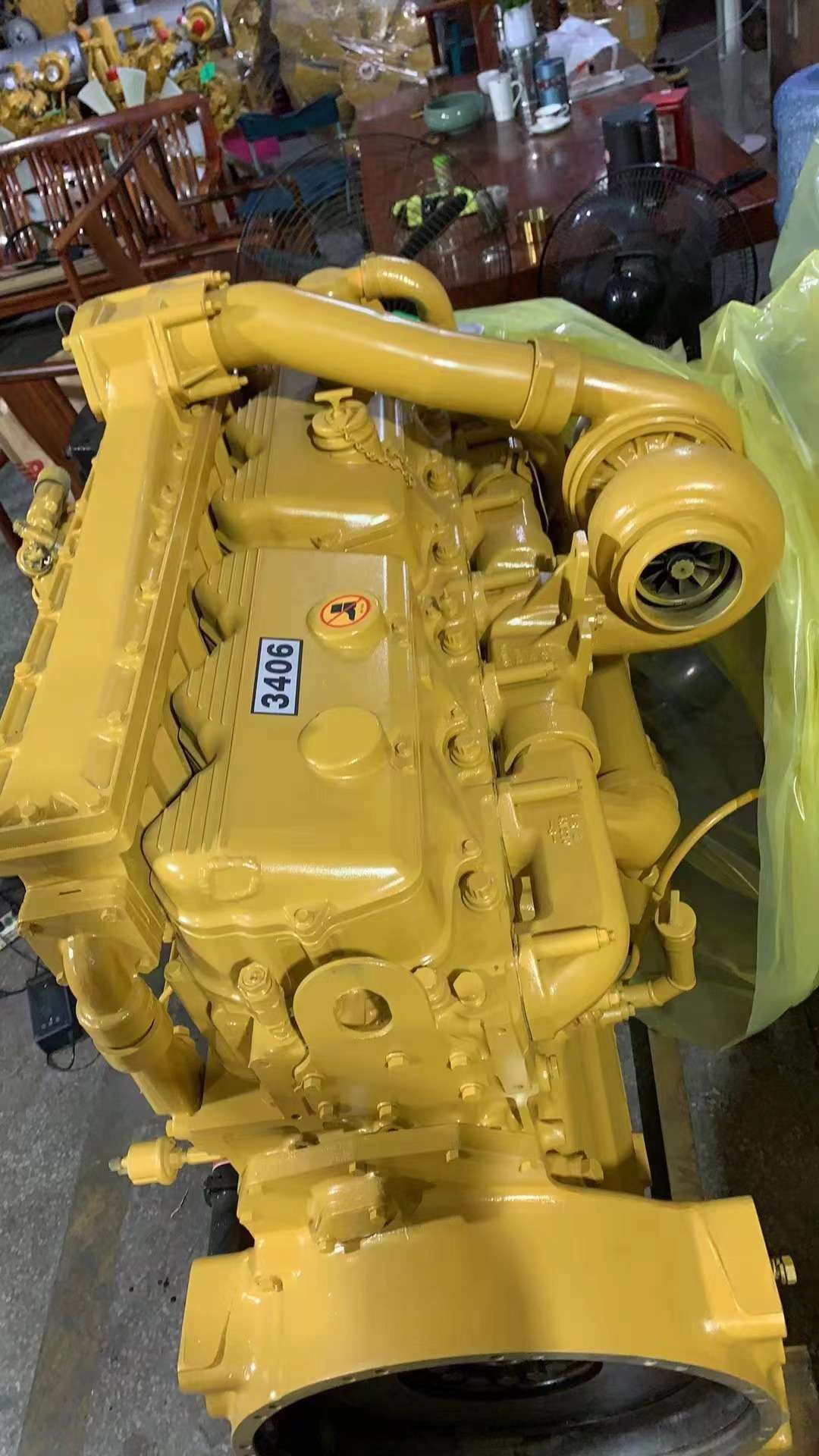

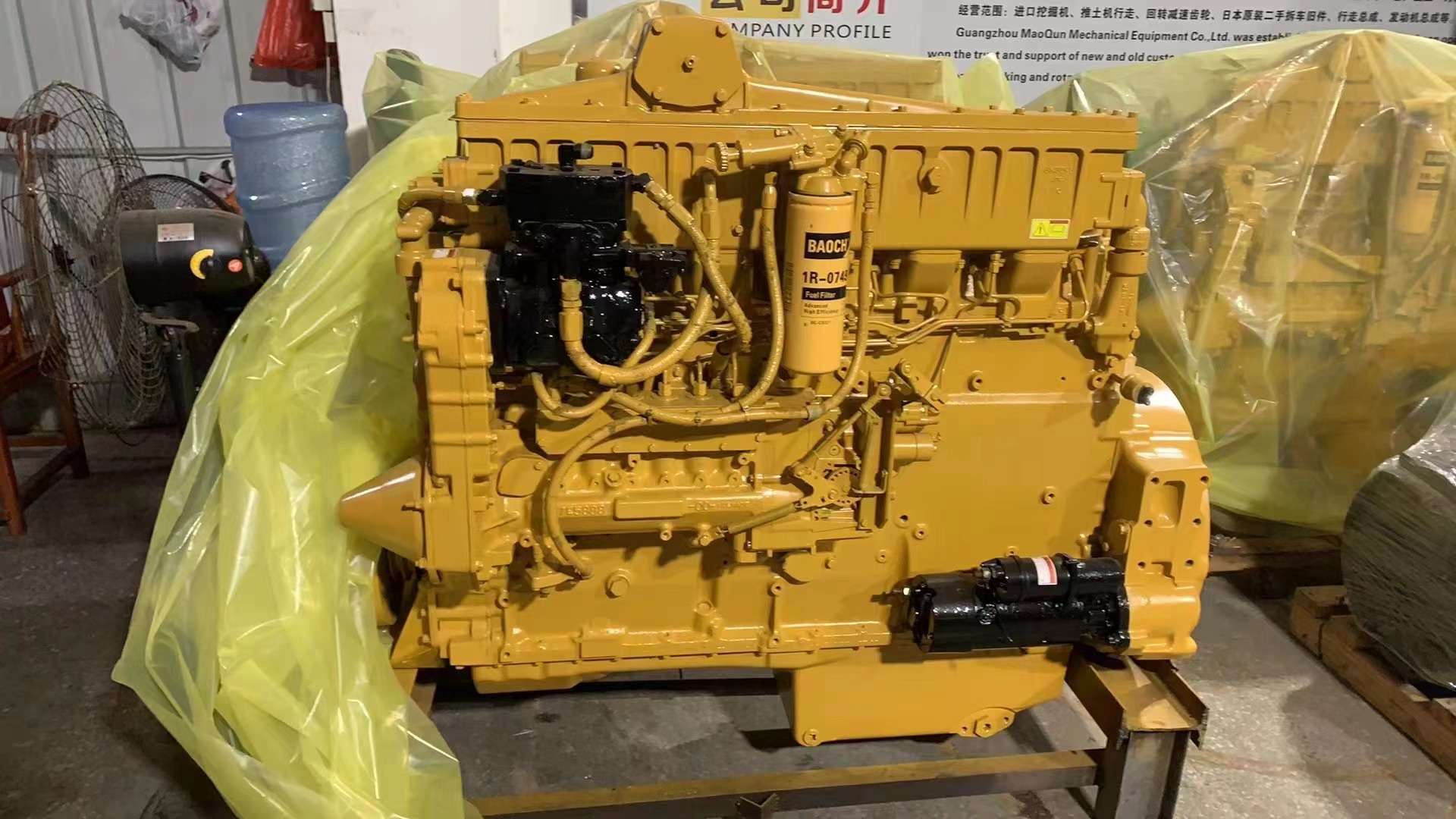

Caterpillar 3406 engine

The CAT 3406 engine is a 6-cylinder inline diesel engine produced by Caterpillar, which is widely used in heavy trucks, construction machinery, power generation equipment and other fields. The engine is famous for its high power, long life and reliability. The following are the main performance parameters of the CAT 3406 engine:

Main performance parameters:
Engine type: 6-cylinder inline water-cooled diesel engine
Displacement: 14.6 liters (14,600 cc)
Rated power: depends on the specific model and configuration, commonly:
3406B: 275 kW (about 370 horsepower) @ 2,100 rpm
3406C: 315 kW (about 420 horsepower) @ 2,100 rpm
3406E: 353 kW (about 472 horsepower) @ 1,800 rpm
Maximum torque: 1,550–1,750 Nm (about 1,145–1,290 lb-ft) @ 1,200 rpm
Turbocharged: Yes (with intercooler)
Fuel system: Electronically controlled fuel injection system (EUI or HEUI system)
Emission standards: Different versions of the 3406 engine meet different emission standards, including emission requirements of EPA, EU and other regions.
Cooling method: water-cooled
Starting method: electric start
Fuel consumption rate: high fuel efficiency, low emissions, optimized fuel consumption
Engine weight: about 1,100–1,400 kg, the specific weight varies depending on different versions and configurations
Advantages and features:
Powerful power output: The 3406 engine is suitable for operation under high loads with its excellent power and torque output, especially for long-term high-intensity work.
High reliability and durability: Caterpillar’s design concept emphasizes reliability in long-term, high-load operation, and the 3406 engine has strong resistance to wear and fatigue.
Optimized fuel efficiency: Although it is a large-displacement engine, the 3406 still has excellent fuel efficiency while ensuring power output, reducing fuel costs for long-term operation.
Lower emissions and noise: New versions (such as the 3406E) meet stricter emission standards and are equipped with noise suppression technology to meet the needs of different markets around the world.
Easy maintenance: Caterpillar engines generally have a design that is easy to maintain and repair, making maintenance work more convenient and reducing the cost of long-term use.
Application areas:
Heavy trucks: commonly used in the truck and transportation industries, especially suitable for long-distance transportation.
Engineering machinery: suitable for excavators, bulldozers, loaders, etc.
Generators: suitable for various types of generators, providing stable power output.
Other heavy-load equipment: including tractors, mining equipment, etc.The CAT 3406 engine is a classic high-performance engine from Caterpillar. With its strong power output, durability and high fuel efficiency, it is widely used in the field of heavy equipment, especially in truck transportation and construction machinery.
