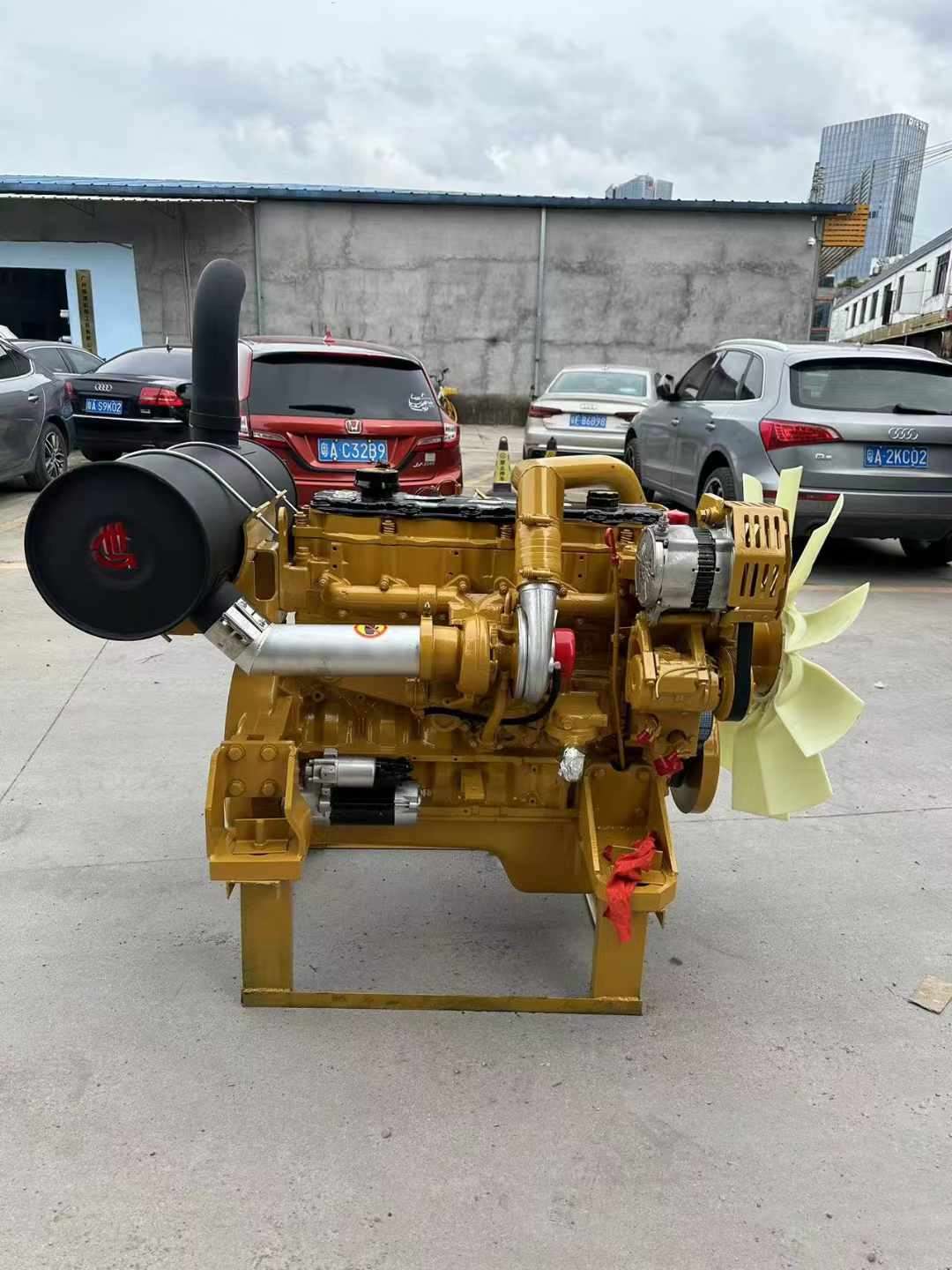

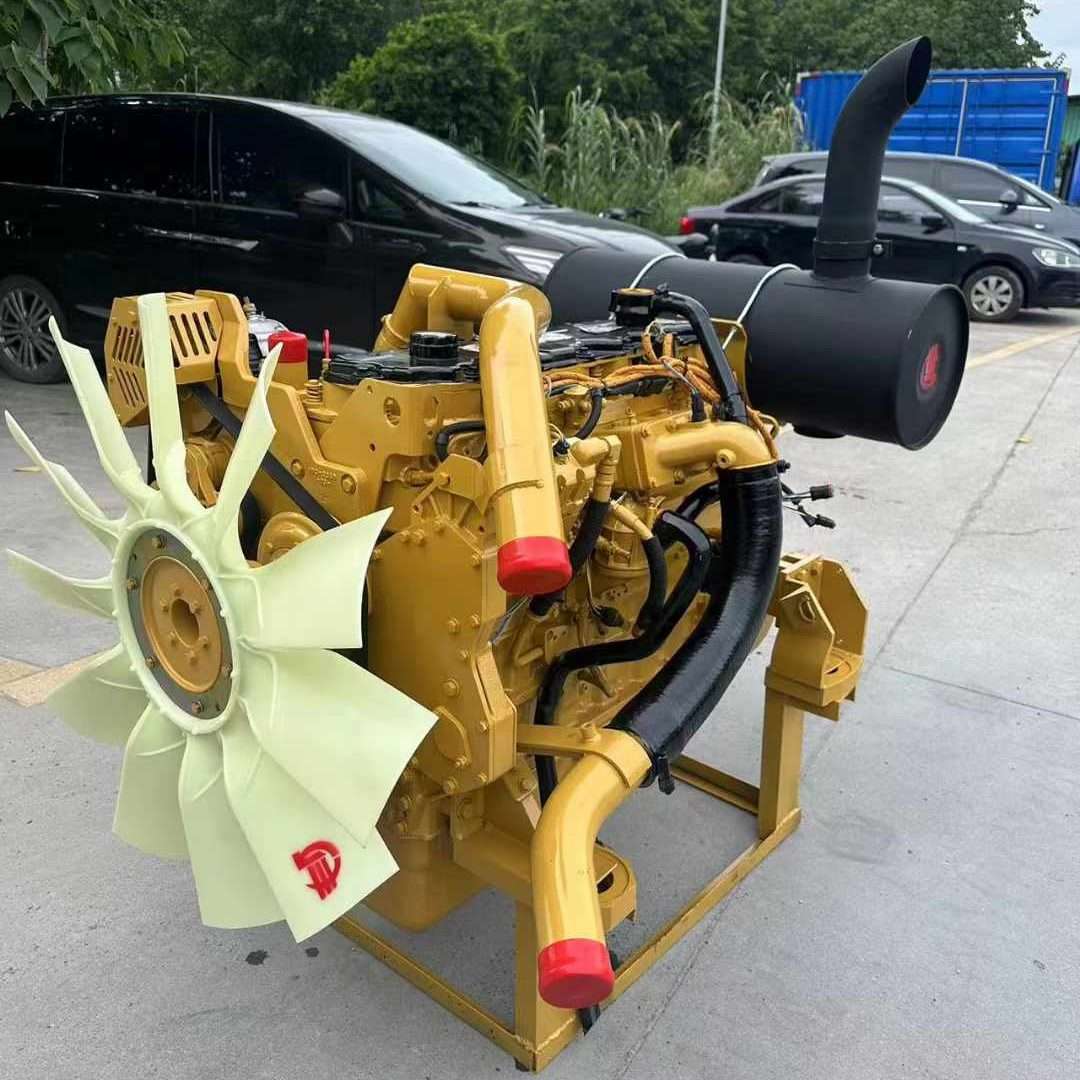

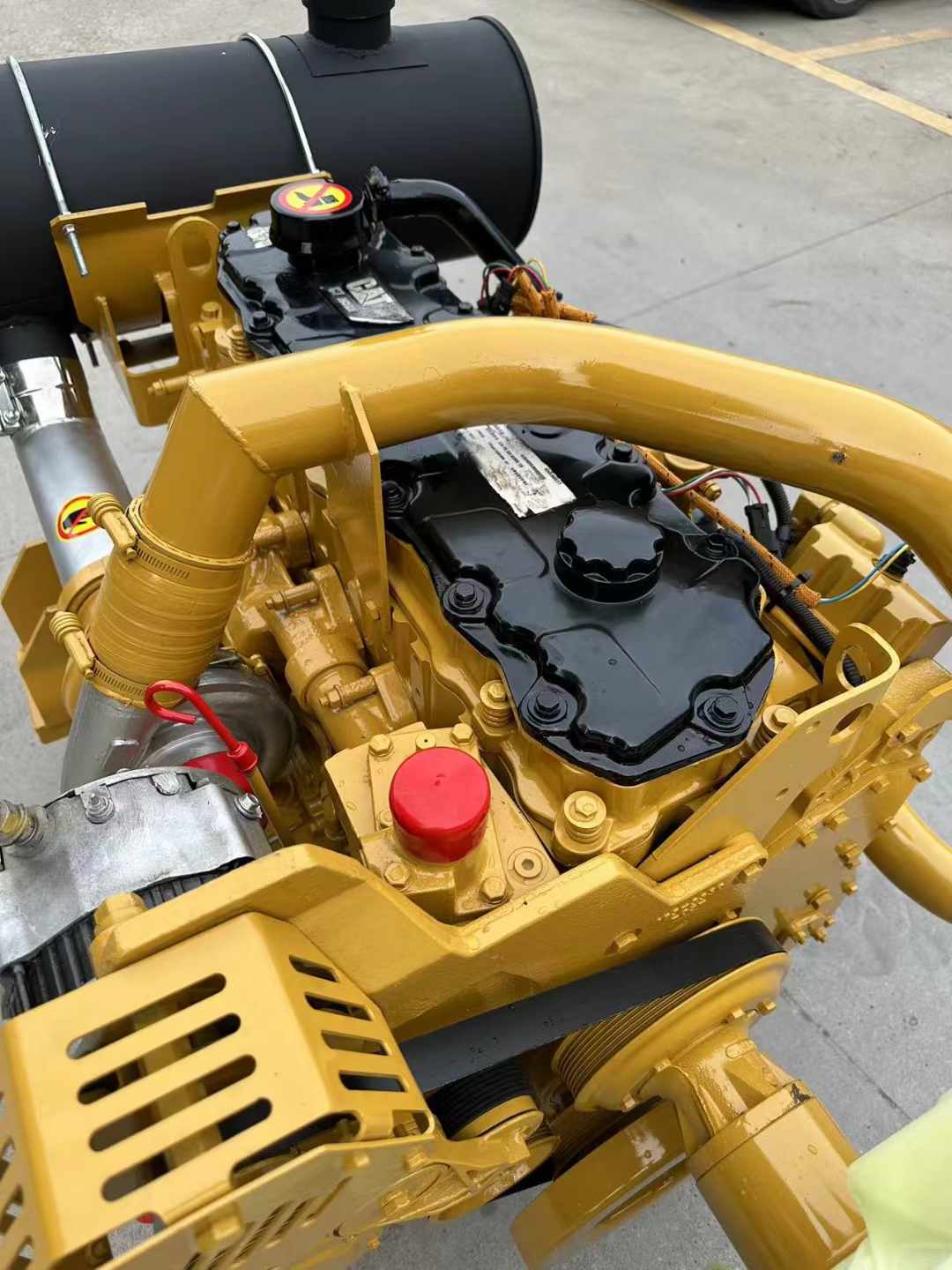

CAT C7 Engine

CAT C7 is a medium-duty diesel engine produced by Caterpillar, which is widely used in commercial vehicles, construction equipment, agricultural machinery, generator sets and other industries. The C7 engine provides reliable power output, good fuel efficiency and rugged structure, and is particularly suitable for heavy-duty operations under high loads and harsh environments.

1. Basic parameters
Model: CAT C7
Engine type: inline six-cylinder, turbocharged, liquid-cooled diesel engine
Displacement: 7.2 liters (7200cc)
Number of cylinders: 6 cylinders
Cooling method: water cooling system
Fuel system: electronically controlled high-pressure common rail injection system
2. Performance parameters
Maximum power: The power range of CAT C7 is generally between 210 horsepower (157 kW) and 330 horsepower (246 kW), depending on the specific application and configuration of the engine.
Maximum torque: The maximum torque is between 1,100 Nm and 1,400 Nm, providing strong low-speed torque, suitable for heavy-load starting and acceleration.
Rated speed: The rated speed of the C7 engine is usually between 1800 RPM and 2200 RPM, ensuring that the engine can provide continuous and stable power output under different working conditions.
Compression ratio: The compression ratio is usually 17:1, which is designed to improve combustion efficiency and optimize the engine’s power output.
3. Fuel efficiency and emissions
Fuel efficiency: The CAT C7 engine uses advanced fuel injection technology to improve combustion efficiency and reduce fuel consumption, which is particularly suitable for equipment and vehicles that need to work continuously for a long time.
Emission control: The CAT C7 meets earlier emission standards (such as EPA Tier 2 or Tier 3), and its emission control system includes technologies such as exhaust gas recirculation (EGR). Although it is not equipped with modern SCR or DPF systems, it already has certain environmental protection performance at the time.
4. Design and structure
Engine design: The C7 adopts an inline six-cylinder design. The engine structure is compact, can provide smooth operation performance, reduce vibration, and is suitable for long-term high-load operation.
Turbocharger: The engine is equipped with a turbocharger, which can increase air flow, thereby improving combustion efficiency and power output, especially at low speeds, providing stronger torque.
High-pressure common rail injection system: The C7 engine uses an electronically controlled high-pressure common rail injection system, which makes fuel injection more precise, thereby improving the engine’s combustion efficiency and reducing pollutant emissions.
5. Application areas
CAT C7 engines are widely used in many fields and are suitable for various heavy equipment that require high power and stability. The main application areas include:

Commercial transportation: such as medium-sized trucks, buses, trucks, etc., providing stable power output, suitable for long-distance transportation and high-load transportation.
Construction machinery: such as small excavators, bulldozers, loaders, etc., C7 provides strong power support, suitable for heavy operations such as construction and mining.
Agricultural machinery: such as tractors, harvesters, etc., C7 engines are suitable for agricultural equipment and provide reliable power support.
Generator sets: As a backup or main power source, C7 engines are widely used in generator sets to ensure stable power output.
Ships: C7 is also used in some medium-sized ships as the main power system to provide continuous power support.
6. Maintenance and care
In order to ensure the long-term stable operation of the CAT C7 engine, regular maintenance and care are very important. Common maintenance items include:

Oil change: Regularly check and replace the oil and filter element to ensure that the engine’s lubrication system works properly and reduce wear.
Air filter check: Check the air filter to ensure that the air inhaled by the engine is clean and avoid dust and impurities from damaging the engine.
Fuel system check: Regularly check the fuel filter to ensure that the fuel supply system works properly and avoids blockage.
Cooling system check: Check the coolant level to ensure that the engine maintains the appropriate temperature when working to prevent overheating.
Exhaust system check: Regularly check the exhaust system to ensure that the exhaust gas recirculation (EGR) system and other emission control systems work properly to reduce emissions.
Turbocharger check: Check the status of the turbocharger to ensure that it works properly to avoid power loss due to carbon deposits or other reasons.
7. Advantages and Features
High reliability: The CAT C7 engine is designed to be sturdy and made of high-quality materials. It is suitable for high-load work under harsh working conditions and has excellent durability.
Low fuel consumption: Through the efficient fuel injection system and turbocharger design, the C7 engine provides low fuel consumption and high fuel economy, which is suitable for equipment with long-term operation.
Powerful low-speed torque: The C7 engine provides sufficient low-speed torque, which is suitable for heavy load and starting needs, especially under high load conditions.
Low emissions: Although it does not use the latest emission after-treatment technology, the C7 still has certain emission control capabilities and meets the early EPA emission standards.
Easy maintenance: The engine design is simple, maintenance and maintenance are relatively easy, which can reduce the operating cost of the equipment.
8. Common problems and troubleshooting
Difficult starting: It may be low battery, fuel supply problem or starter motor failure. Check the battery power and fuel system to ensure that the starting system is normal.
Lack of power: It may be a clogged air filter, a fuel injection system failure or a turbocharger problem. Check and clean the air filter to ensure that the fuel injection system is working properly.
Engine overheating: Insufficient coolant, clogged radiator or water pump failure may cause overheating. Check the coolant level and the working condition of the cooling system.
Excessive emissions: There may be a problem with the EGR system or exhaust control system. Check the exhaust system and clean related components to ensure that emissions meet the standards.
