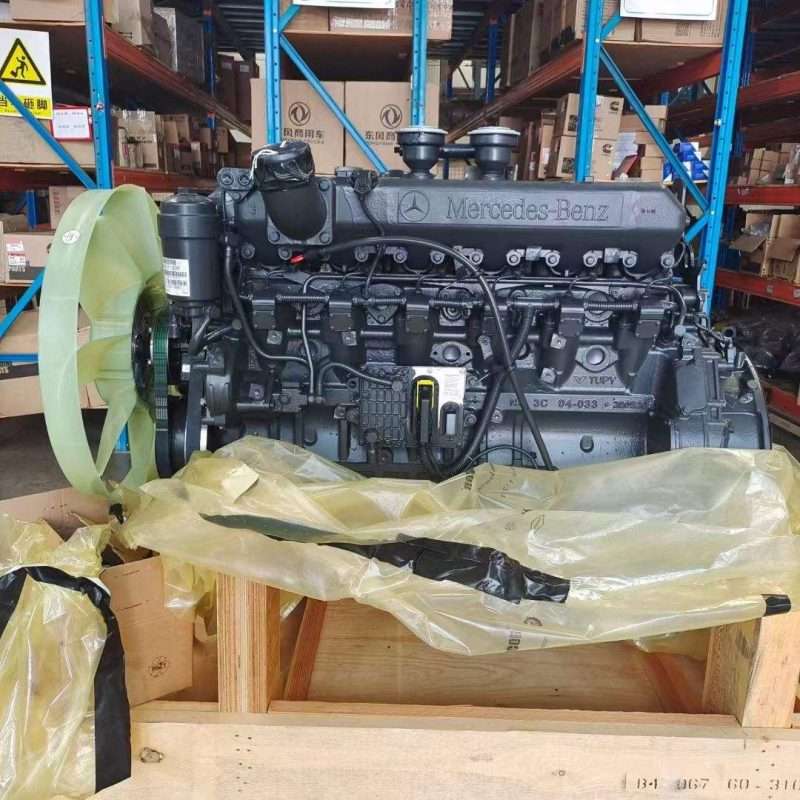

Mercedes-Benz OM460LA Engine: Flagship Traction Beast
The Mercedes-Benz OM460LA engine, with its unfathomable displacement and awe-inspiring low-speed traction, established absolute authority among 13-liter heavy-duty engines. As the ultimate evolution of the OM457LA, pushing cylinder head and stroke to their limits, this inline six-cylinder, water-cooled, turbocharged, and intercooled heavy industrial behemoth boasts a total displacement of 12.816 liters. While maintaining a precise 128 mm bore, Mercedes-Benz engineers achieved an unprecedented piston stroke of 166 mm through extremely radical physical geometry reconfiguration. This 12.8-liter long-stroke powerhouse can unleash a ferocious net power output of 260 kW to 335 kW (approximately 350 to 450+ hp) at a low 1900 RPM. Even more terrifying is its torque curve, purely designed for extreme tearing power: in the extremely low-speed sweet spot of 1000 to 1400 RPM, the OM460LA can instantly and continuously unleash a devastating peak torque of over 2200 Nm. In jianmingmachinery heavy-duty large-displacement internal combustion engine evaluation matrix, the extreme lever effect resulting from this 166 mm ultra-long stroke gives the ultra-heavy-duty chassis the unparalleled confidence to withstand resistance during fully loaded starts and steep inclines.
From a deep analysis of the cutting-edge engineering dimensions of combustion thermodynamics and precision fluid transport, the technological soul of the OM460LA engine still adheres to and optimizes Mercedes-Benz’s most mature heavy-duty PLD (Pumpen-Leitungs-Düse, unit pump-high-pressure fuel line-injector) electronically controlled direct fuel injection architecture. Inheriting the lineage of the OM457LA, it employs a highly efficient four-valve-per-cylinder (24 valves total) overhead venting (OHV) architecture. Under the microsecond-level precision of the powerful MR engine control module’s solenoid valve commands, six high-flow, heavy-duty independent unit pumps are directly mechanically compressed by a robust built-in camshaft, instantly pushing the fluid pressure to an extreme ultra-high pressure exceeding 1800 bar. The pressurized fuel is then delivered to the multi-hole vertical central injector through equal-length, extremely short high-pressure fuel lines. Within the massive 12.8-liter capacity, high-density intercooled air and ultra-high-pressure atomized diesel fuel achieve near-perfect homogeneous mixing in the intense charging vortex created by the four-valve structure. This fusion of extreme mechanical rigidity and microelectronic precision not only thoroughly extracts the calorific value of diesel fuel but also enables the OM460LA to exhibit fuel economy rarely seen in its class under extremely demanding full-load conditions.
To seamlessly withstand the devastating cylinder burst pressure and piston lateral thrust generated by the 12.8-liter super-large displacement and 166 mm extreme long stroke under full load, the OM460LA adopts the world’s top heavy-duty industrial standards in the casting of the base cylinder block, crankshaft metallurgy, and friction pair thermal management. Its base cylinder block is precision integrally cast from high-strength alloy cast iron and also comes standard with independent, easily replaceable full-water-jacketed wet cylinder liners on-site. This not only ensures excellent local heat conduction of the 128 mm large-bore cylinder but also gives it almost unlimited chassis overhaul range. The central nervous system that bears the intense 166 mm power stroke impact and huge second-order vibration—a massive crankshaft, integrally forged from special alloy steel and subjected to rigorous micro-dynamic balancing and deep high-frequency quenching treatment—is firmly anchored by wide heavy-duty steel back sliding bearings. With a specially optimized high-flow oil pump and a high-pressure forced-cooling network at the piston bottom, the risk of localized extreme thermal melt-up caused by long strokes is completely eliminated.
However, under the brutal test of the long, million-kilometer journeys of heavy-duty long-haul logistics and the long-term high-load traction in harsh mining areas, even a German flagship like the OM460LA, at the pinnacle of industrial engineering, will inevitably face irreversible fatigue and wear on its high-pressure fluid control components and the underlying moving parts that bear the ultimate stroke. When abnormal wear and cavitation occur in the piston skirt and wet cylinder liners at the 166 mm stroke due to prolonged full-load operation, or when the PLD unit pump pressure drops sharply due to fuel system fatigue, the torque output of this 12.8-liter behemoth will be significantly reduced. At jianmingmachinery the hub for high-stress, heavy-duty engine parts, we provide global overhaul engineers with a comprehensive range of products, including genuine original equipment manufacturer (OEM) high-flow PLD unit pumps, vertical injector assemblies, long-stroke reinforced pistons with precise 128 mm geometric tolerances and extremely high lateral pressure resistance, and wet cylinder liner assemblies. We understand that in the deep overhaul and rework of these flagship 13-liter heavy-duty engines, even the slightest leakage in fluid pressure or a micrometer-level misalignment in mechanical tolerances can be catastrophic. Only by adhering to the most stringent OEM-level heavy-duty industry standards can their uncompromising peak traction be restored.
