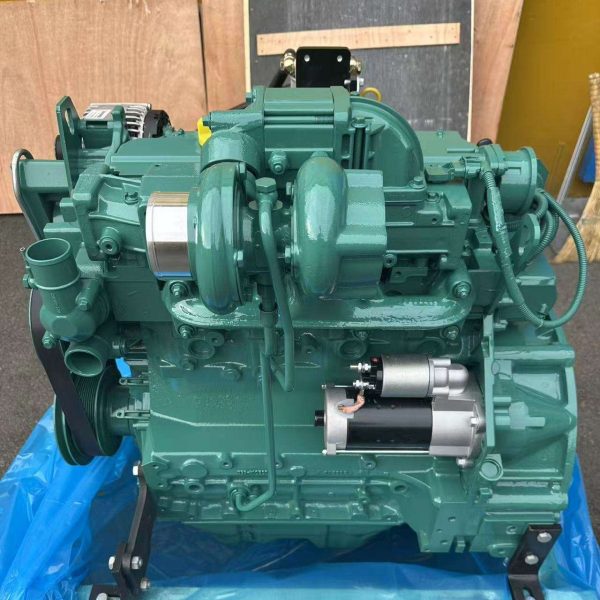

In-Depth Technical Analysis of the Volvo D4D Engine
The Volvo D4D engine is a 4.0-liter inline four-cylinder, liquid-cooled, turbocharged diesel engine, a mainstay of Volvo CE’s mid-range powertrain lineup. The D4D platform, through highly integrated mechanical design and advanced fuel control technology, is specifically designed to power 10-15 ton wheel loaders (such as the L45 and L50 series) and medium-sized tracked excavators (such as the EC140 series). From jianmingmachinery’s perspective, the D4D engine not only represents Volvo’s pursuit of high fuel efficiency but is also a product of the perfect combination of power output and low vibration characteristics. Its core engineering logic lies in releasing enormous hydraulic drive force within a lower RPM range through an optimized long-stroke design, ensuring that the machinery maintains extremely responsive and agile power performance when performing heavy excavation or loading tasks.
From the perspective of thermal efficiency and injection engineering, the core technology of the D4D engine lies in its evolved fuel injection system (typically equipped with a high-performance mechanical distributor pump or electronic control unit, depending on the specific emission sub-model). Volvo engineers, through precise simulation of the airflow within a 100mm bore, designed a unique cross-flow cylinder head structure, significantly improving intake and exhaust exchange efficiency. Combined with a high-pressure turbocharger and an air-to-air aftercooler, the D4D can create extremely high oxygen density within the cylinder. This means that in each power stroke, the fuel mixes more thoroughly with air and burns more intensely, producing an extremely linear power curve. This design ensures minimal speed drop when facing sudden high-drag conditions, exhibiting the characteristic “robust” nature of Volvo powertrains and greatly shortening the operating cycle time.
In terms of structural strength and harmonic attenuation, the D4D’s cylinder block architecture demonstrates the extreme pursuit of durability by Nordic engineering. To address the lateral forces that the 4.0-liter four-cylinder engine may generate during operation, Volvo employs a deep-skirted, one-piece cast iron cylinder block, reinforced with ribs to enhance overall rigidity and suppress mechanical noise. Its crankshaft is forged from high-strength alloy steel and induction hardened, coupled with a heavy-duty bearing housing structure to ensure extremely low deflection during power transmission. The D4D also prioritizes ease of maintenance; its timing system uses a rear gear train, which not only shortens the overall engine length, making it easier to place in a compact engine compartment, but also effectively reduces gear noise caused by torque fluctuations by moving the gears to the flywheel side, further improving operator comfort.
Fluid protection and thermal load management are key safeguards for the D4D engine’s long service life. Considering that industrial machinery often operates continuously in high-temperature, high-dust environments, Volvo has equipped the D4D with a high-efficiency oil cooler and a full-flow filtration system to ensure that critical friction pairs remain under pressure lubrication protection even under extreme conditions. However, in the technical maintenance feedback from jianmingmachinery, the D4D engine showed a certain sensitivity to “cold start procedures” and “fuel hygiene.” Due to the extremely precise manufacturing process of its injectors, even the slightest moisture or particulate contamination can cause wear on the precision orifice of the nozzle tip, leading to poor fuel atomization and black smoke. Therefore, consistently using original factory-spec 2-micron high-efficiency fuel filters and regularly checking the pH value of the cooling system are physical prerequisites for preventing cylinder liner cavitation and maintaining the integrity of the MLS (Multi-Layer Steel) cylinder head gasket seal.
For equipment repair personnel and parts procurement experts, overhauling a Volvo D4D is a precision task that requires strict adherence to the “metallurgical matching principle.” Whether it’s the 100mm-level piston ring groove reinforcement technology or the yield point preload requirements of the connecting rod bolts, both directly affect the structural strength of the engine after repair. At jianmingmachinery, every core component of the D4D we provide, from precision piston kits to high-flow water pumps, is strictly matched to Volvo’s original factory engineering parameters. We understand that a D4D driven machine is a core production tool for our customers. Only through precise parts matching and scientific maintenance solutions can this 4.0-liter power engine regain its stable, efficient, and explosive industrial rhythm after repair.
