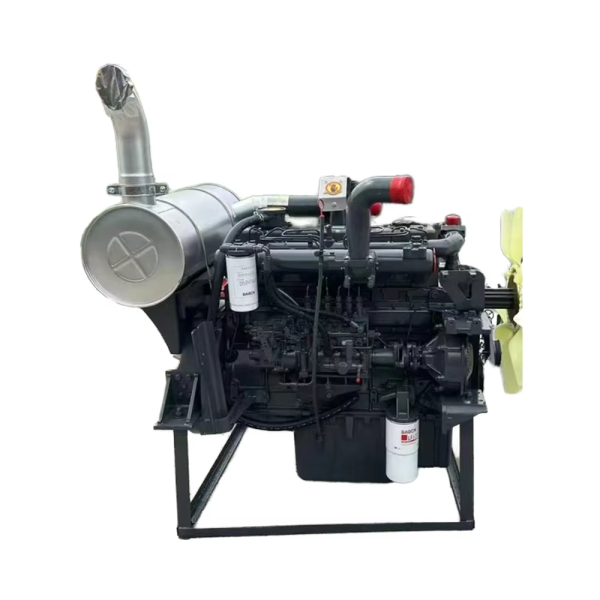

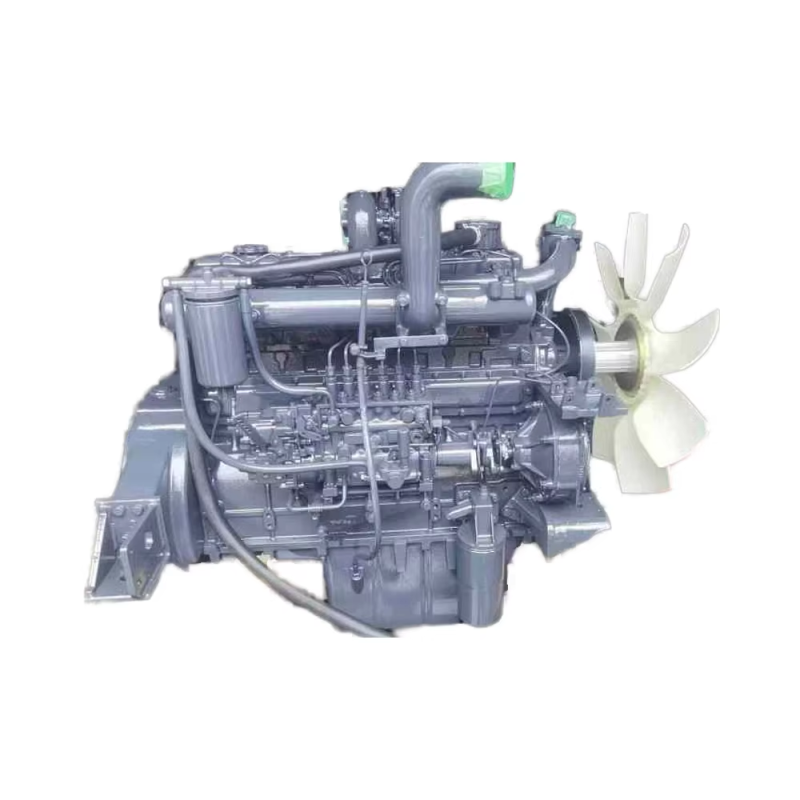

Doosan DE08 Engine Pure Mechanical Power
In the power selection of 30-ton heavy-duty tracked excavators (such as the classic Doosan DH300LC-7) and large wheel loaders, the Doosan DE08 engine, with its extremely robust mechanical qualities and excellent durability, has become an irreplaceable heavy-duty pioneer in the construction machinery field. This inline six-cylinder, water-cooled, four-stroke pure mechanical direct injection diesel engine has an ideal displacement of 8.071 liters (commonly referred to as 8.1 liters) for heavy-duty use. Through the physical geometry of a wide bore of 111 mm and a long stroke of 139 mm, the DE08 can stably and continuously output a powerful 160 kW at a rated speed of 2000 RPM. More importantly, its torque characteristics are specifically tuned for heavy-duty stripping and loading operations. In the low-speed range of 1300 to 1400 RPM, this engine can instantly unleash an astonishing torque exceeding 900 Nm (with peak values reaching around 1000 Nm). In jianmingmachinery heavy machinery power evaluation, the DE08’s low-speed, high-torque physical characteristics provide the most basic and robust mechanical foundation for heavy equipment to overcome extreme resistance, completely avoiding power loss and stalling under load in harsh operating conditions.
From the perspective of thermodynamic combustion and fuel delivery systems, the DE08 engine’s most proud engineering highlight lies in its extremely high tolerance to extremely poor fuel quality. Before the widespread adoption of electronically controlled high-pressure common rail technology, the DE08 adhered to an extremely reliable purely mechanical inline injection pump (large pump) architecture. A mechanical high-pressure fuel pump, directly driven by the engine’s high-precision timing gear system, pressurizes fuel through a precision plunger assembly and forces it through high-pressure fuel lines to the multi-hole direct injection injectors located on the cylinder head.
In stark contrast to the fragility of modern high-pressure common rail systems, which have “zero tolerance” for micron-level impurities, this purely mechanical fuel supply system, combined with a high-efficiency exhaust gas turbocharger and air intercooler, not only ensures vigorous mixing and efficient combustion of large amounts of air and atomized diesel fuel within the 8.1-liter cylinder, but also demonstrates remarkable uptime and extremely low downtime even in remote mining areas with high levels of dust, sulfur content, and impurities in the fuel. This purely mechanical, brute-force aesthetic, which abandons complex electronic sensors, makes the equipment’s maintenance and troubleshooting logic extremely pure and efficient.
To seamlessly withstand the continuous mechanical shocks generated by the powerful 160 kW engine under full load, the DE08 engine’s cylinder block and crankshaft connecting rod mechanism are manufactured to top-tier heavy metallurgical standards. The engine assembly, weighing over 700 kilograms, has a core frame consisting of a deep-skirted cylinder block cast from a single piece of high-strength alloy cast iron. Inside, wear-resistant dry cylinder liners are installed for easy replacement during major overhauls. The central hub, bearing immense explosive stress, is a heavy-duty crankshaft forged from special alloy steel and subjected to deep high-frequency quenching.
This crankshaft is firmly anchored within the cylinder block by seven large and extremely thick main bearing seats. Combined with a high-mass flywheel that has undergone precise dynamic balancing testing and a front-end silicone oil damper, it perfectly mitigates the severe torsional resonance waves generated under low-speed, heavy-load conditions during the 139mm long stroke. This robust multi-point physical support ensures that even when the engine is subjected to high-intensity rock breaking by a 30-ton heavy excavator, the main journals and connecting rod journals maintain a perfect hydrodynamic lubrication film, completely eliminating premature abnormal wear or cylinder seizure caused by uneven local stress.
In extremely demanding open-pit mining or earthmoving projects, even the most robust mechanical structures require a deep, systematic overhaul of their core components after tens of thousands of hours of thermal cycling and physical friction. For a heavy-duty mechanical engine like the DE08 with an 8.1-liter displacement, restoring its factory-fit cylinder compression ratio and mechanical fuel injection timing is absolutely crucial to reshaping its peak kW power. When faced with severe underdrafts due to excessive piston ring wear or a precipitous drop in power due to internal leakage in the mechanical fuel injection pump plunger, it is essential to rely on genuine parts that meet extremely high tolerance standards. Through jianmingmachinery high-stress precision parts supply network, we provide a complete OEM-level remodeling solution for the DE08. This includes high-quality cylinder head gaskets capable of withstanding ultra-high pressure and thermal corrosion, reinforced direct injection piston assemblies with a precise 111 mm diameter tolerance, and rigorously calibrated mechanical fuel injector assemblies and high-flow water pump assemblies. We know that only by arming this classic 8.1-liter mechanical behemoth with the purest industrial standards can it, after undergoing a major overhaul, once again drive heavy machinery with a deafening, deep roar to precisely complete every extreme full-load stripping and loading/unloading operation.
