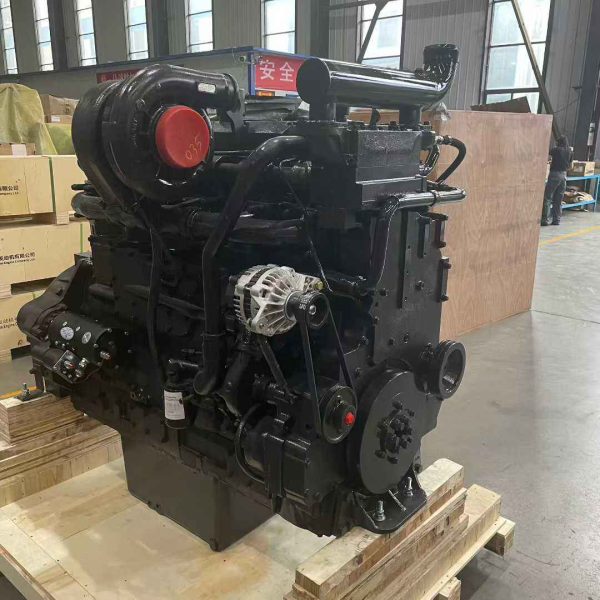

Cummins QSK19 engine, electronically controlled heavy-duty diesel engine

The Cummins QSK19 engine represents an evolution of the classic K19 platform towards a high-power, electronically controlled diesel solution. Designed for harsh industrial environments, the QSK19 delivers higher power density, stricter emissions controls, and superior fuel efficiency while maintaining Cummins’ proven heavy-duty machinery foundation.

At the heart of the QSK19 is a 19-liter inline six-cylinder diesel engine designed for continuous heavy-duty operation. Compared to previous mechanical engines, it integrates an advanced electronic fuel management system, enabling precise injection timing, optimized combustion, and consistent performance across a wide range of operating conditions. This makes the QSK19 particularly suitable for mining equipment, large generator sets, oil and gas operations, marine applications, and high-load construction machinery.

The QSK19 engine retains a robust cast iron cylinder block, forged steel crankshaft, and wet-replaceable cylinder liners, ensuring excellent durability under sustained high torque and thermal stress. This engine architecture is designed to support longer maintenance intervals and predictable overhaul cycles, crucial for large industrial fleets.

Key Technical Specifications (Typical Range)

Engine Type: Four-stroke inline six-cylinder diesel engine

Displacement: 19.0 liters

Intake Method: Turbocharged and intercooled

Rated Power Output: Approximately 500 – 760 hp (depending on application)

Rated Speed: 1800 – 2100 rpm

Torque Output: High low-end torque, optimized for heavy-load starts

Fuel System: Electronic fuel injection (Cummins ECM control)

Cooling System: High-capacity water-cooled system

Lubrication System: Full-pressure lubrication with a high-flow oil pump

Emission Rating: Available in configurations from Tier 2 to Tier 4 / Stage IIIA–V

These parameters position the QSK19 as a high-output, mid-range engine capable of replacing several smaller engines while simplifying the powertrain architecture.

Performance and Engineering Value

From a performance perspective, the QSK19 excels in power consistency and fuel efficiency. Its electronically controlled fuel system ensures optimal air-fuel ratio at all load points, reducing fuel consumption and minimizing emissions during transient load changes. For generator applications, it provides excellent voltage and frequency stability even under sudden load variations.

Thermal management is a major design advantage of this engine. The intercooled intake system significantly reduces combustion temperature, improving engine efficiency and extending component life. Combined with a reinforced cooling circuit, the QSK19 engine maintains stable operating temperatures even under prolonged high-load operation—crucial for environments such as mines and remote power plants.

Maintenance strategy is another significant advantage. Despite its electronic controls, the QSK19 is designed for modular maintenance. Key components such as injectors, turbochargers, and sensors are easily accessible, reducing downtime during planned maintenance. Diagnostic capabilities enabled by the ECM also support predictive maintenance, allowing operators to address problems before they escalate into failures. Typical Applications

Cummins QSK19 engines are widely used in:

Large diesel generator sets (500–750 kVA class)

Mining trucks, drilling rigs, and auxiliary equipment

Oil and gas field power units and pump drives

Marine propulsion and auxiliary power systems

Heavy-duty construction machinery requiring continuous torque output

Its flexibility in power, emissions, and duty cycle makes it a strategic choice for long-term industrial projects.

jianming Machinery – QSK19 Supply and Technical Support Partner🔩

jianming Machinery supplies Cummins QSK19 complete engines, refurbished engines, and original/compatible parts, including injectors, ECM modules, turbochargers, cylinder heads, cylinder liners, pistons, crankshafts, sensors, and overhaul kits. We also offer engine selection, power upgrades, emissions matching, and full lifecycle maintenance planning services.

If your project requires high throughput, electronic precision, and industrial-grade durability, the Cummins QSK19 will provide measurable operational advantages—jianming Machinery will ensure reliable supply and technical continuity.
